Argo
Mauro Lipparini

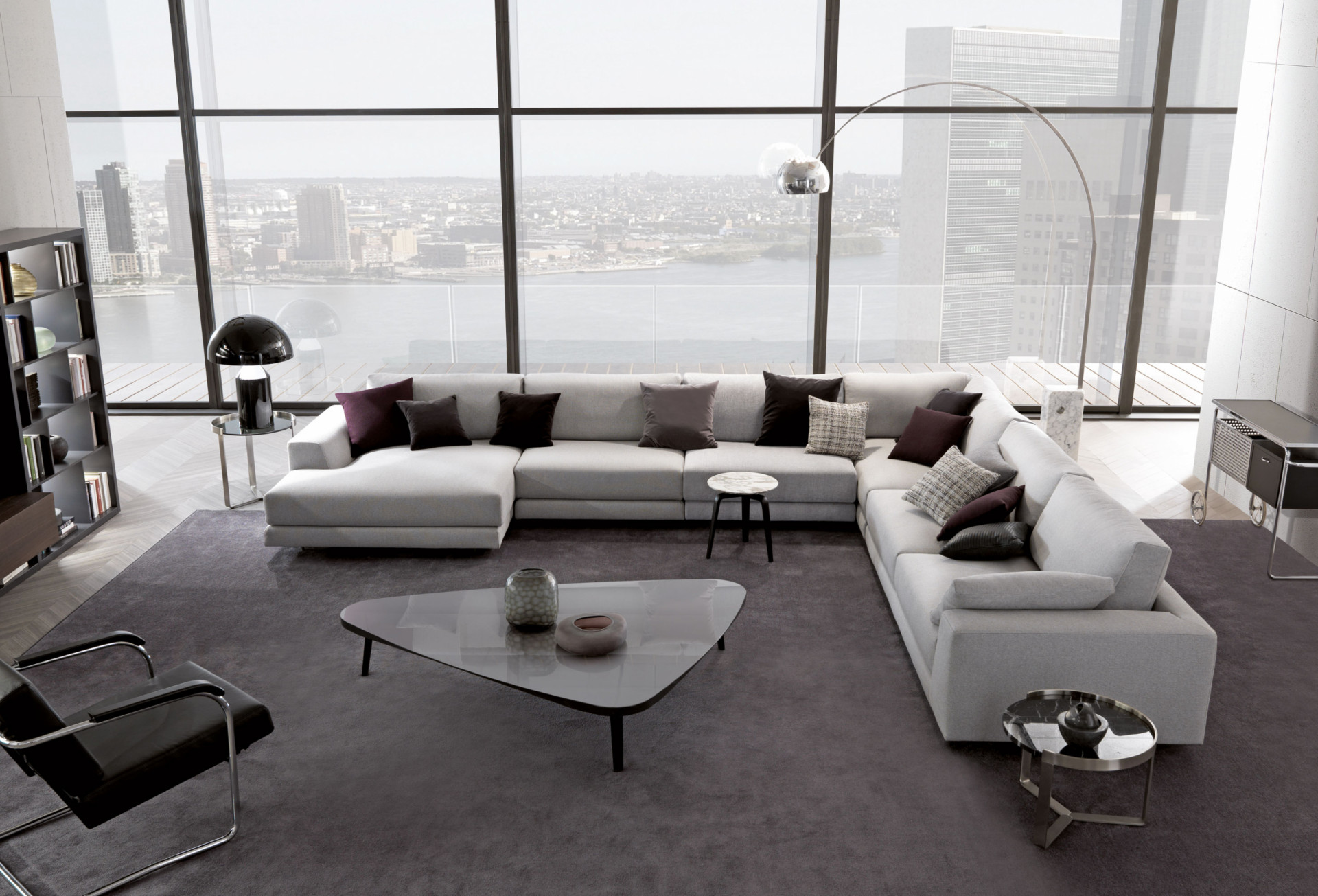

Perfect for a unique living room based around balance and bespoke aesthetics, the C-shaped Argo sofa fills the space with its fully customisable set-up thanks to a succession of storage/pedestal elements. An unbeatable mix of good design and the best materials.
Type / Sofas
Technical description
Argo is a sofa system, which is available in fixed and modular versions. It is characterised by the multiple possibilities of its compositions. It has a plywood frame and includes central units without an armrest, a corner and terminal element with two different types of armrests, pouf and chaise-longue. All these units are available in two different widths and are totally integrable to each other. The project also includes coffee tables and bookcases, which can be stacked on the side or the back of the sofas.
Cushions: removable available in 970mm (38 2/8”) and 1170mm (46 1/8”) widths. The polyurethane foam seat cushion has different densities and covered with polyester fibre. The back cushion is made of polyester fibre and sterilized feathers and upholstered with cotton lining.
Bookcase elements: are independent from the sofas and can be placed without any restrictions. The bookcase units and tables are constructed from Th.38mm. wood particle panels. Available in the finishes: matt lacquered, glossy lacquered or wood.
Legs: H80mm (3 1/8”) tall adjustable of the sofa and bookcases are in a gunmetal finish.
Restricted download
- HR Images
- 3D (.3ds)
- 2D (.dwg)
- 2D (.pdf)
- Assembling instructions
Cover Finishings
Fabrics
Nodone
Barbat
Lario
Artide
Ostellato
Indianskop
Tundra
Yellowstone
Gemma Plus
Velluto Lario
Velluto Regal
Hira
Sorisole
Gaucho
Orsetto
Eco-leathers
Embossed eco-leathers A291 / A844
Embossed eco-leathers Rebel
Embossed eco-leathers Vintage
Smooth eco-leathers Bloom
Smooth eco-leathers Old
Leathers
Smooth leathers
Brushed leather
Feet Finishings
Metals
Matt metals
Bookcase Finishings
Lacquered colours
Matt lacquered
High gloss lacquered
Veneers
Matt Veneers
Dimensions
Sofa W. 2140 mm split sitting cushion - armrest W. 100 mm
Sofa W. 2140 mm full sitting cushion - armrest W. 100 mm
Sofa W. 2540 mm split sitting cushion - armrest W. 100 mm
Sofa W. 2540 mm full sitting cushion - armrest W. 300 mm
Sofa W. 2540 mm split sitting cushion - armrest W. 300 mm
Sofa W. 2940 mm split sitting cushion - armrest W. 300 mm
Sofa W. 2940 mm full sitting cushion - armrest W. 300 mm
Sofa W. 2740 mm
Sofa W. 2540 mm, top support W. 300 x D. 840 mm - full sitting cushion
Sofa W. 2540 mm, top support W. 300 x D. 840 mm - split sitting cushion
Sofa W. 2940 mm, top support W. 300 x D. 840 mm - split sitting cushion
Sofa W. 2940 mm, top support W. 300 x D. 840 mm - full sitting cushion
Sofa W. 2340 mm - top support W. 300 x P. 940 mm, ful sitting cushion, SX-DX
Sofa W. 2340 mm - top support W. 300 x P. 940 mm, ful sitting cushion, SX-DX
Sofa W. 2740 mm - armrest W. 100 mm, top support W. 300 x D. 840 mm, split sitting cushion
Sofa W. 2740 mm - armrest W. 100 mm, top support W. 300 x D. 840 mm, full sitting cushion
Sofa W. 2540, top support W. 300 x D. 940 mm, split sitting cushion
Sofa W. 2540, top support W. 300 x D. 940 mm, full sitting cushion
Sofa W. 2940, top support W. 300 x D. 940 mm, split sitting cushion
Sofa W. 2940, top support W. 300 x D. 940 mm, full sitting cushion
Central element W. 970 mm
Central element W. 1170 mm
Central element W. 1940 mm, split sitting cushion
Central element W. 1940 mm, full sitting cushion
Central element W. 2340 mm, split sitting cushion
Central element W. 2340 mm, full sitting cushion
Terminal element W. 1070 mm - armrest W. 100, SX-DX
Terminal element W. 1270 mm
Terminal element W. 2040 mm - armrest W. 100, split sitting cushion SX-DX
Terminal element W. 2040 - armrest W. 100 mm, full sitting cushion, SX-DX
Terminal element W. 2240 mm - armrest W. 100 mm, split sitting cushion, SX-DX
Terminal element W. 2440 - armrest W. 100 mm, full sitting cushion, SX-DX
Terminal element W. 1270 mm - armrest W. 300, SX-DX
Terminal element W. 1470 mm - armrest W. 100, SX-DX
Terminal element W. 2240 mm - armrest W. 300 mm, split sitting cushion, SX-DX
Terminal element W. 2640 - armrest W. 300 mm, full sitting cushion, SX-DX
Terminal element W. 2640 mm - armrest W. 300, split sitting cushion SX-DX
Terminal element W. 2240 - armrest W. 300 mm, full sitting cushion, SX-DX
Terminal element W. 1270 mm - top support W. 300 x D. 840 mm, SX-DX
Terminal element W. 1470 mm - top support W. 300 x D. 840 mm, SX-DX
Terminal element W. 2240 mm - top support W. 300 x D. 840 mm, split sitting cushion, SX-DX
Terminal corner element W. 2240 mm - top support W. 300 x P. 840 mm, full sitting cushion, SX-DX
Terminal corner element W. 2340 mm - top support W. 300 x P. 840 mm, split sitting cushion, SX-DX
Terminal element W. 2640 mm - top support W. 300 x D. 840 mm, split sitting cushion, SX-DX
Corner element W. 1070 mm, SX-DX
Corner element W. 1270 mm, SX-DX
Corner element W. 2040 mm, split sitting cushion SX-DX
Corner element W. 2440 mm, split sitting cushion SX-DX
Corner element 45° W. 1260 x D. 1200 mm
Corner element W. 1270 mm - top support W. 300 x D. 840 mm. SX-DX
Corner element W. 1470 mm - top support W. 300 x D. 840 mm. SX-DX
Corner element W. 2240 mm - top support W. 300 D. 840 mm, split sitting cushion SX-DX
Corner element W. 2240 mm - top support W. 300 D. 840 mm, full sitting cushion SX-DX
Corner element W. 2640 mm - top support W. 300 D. 840 mm, split sitting cushion SX-DX
Corner element W. 2640 mm - top support W. 300 D. 840 mm, full sitting cushion SX-DX
Terminal corner element W. 2140 mm _ split sitting cushion, SX-DX
Terminal corner element W. 2540 mm - split sitting cushion, SX-DX
Terminal corner element W. 2340 mm -armrest L. 300 mm, split sitting cushion, SX-DX
Terminal corner element W. 2740 mm -armrest L. 300 mm, split sitting cushion, SX-DX
Terminal corner element W. 2340 mm - top support W. 300 x D. 840 mm, full sitting cushion, SX-DX
Terminal corner element W. 2740 mm - top support W. 300 x D. 840 mm, full sitting cushion, SX-DX
Terminal corner element W. 2340 mm - top support W. 300 x P. 940 mm, split sitting cushion, SX-DX
Terminal corner element W. 2340 mm - top support W. 300 x P. 940 mm, full sitting cushion, SX-DX
Terminal corner element W. 2740 mm - top support W. 300 x P. 940 mm- armrest W. 300 mm, full sitting cushion, SX-DX
Terminal corner element W. 2740 mm - top support W. 300 x P. 940 mm- armrest W. 300 mm, split sitting cushion, SX-DX
Terminal corner element W. 2540 mm - top support W. 300 x P. 940 mm- armrest W. 300 mm, ful sitting cushion, SX-DX
Terminal corner element W. 2940 mm - top support W. 300 x P. 940 mm- armrest W. 300 mm, split sitting cushion, SX-DX
Terminal corner element W. 2940 mm - top support W. 300 x P. 940 mm- armrest W. 300 mm, full sitting cushion, SX-DX
Terminal corner element W. 2540 mm - top support W. 300 x D. 940 mm, top support W. 300 x D. 840, full sitting cushion, SX-DX
Terminal corner element W. 2540 mm - top support W. 300 x D. 940 mm, top support W. 300 x D. 840, full sitting cushion, SX-DX
Terminal corner element W. 2940 mm - top support W. 300 x D. 940 mm, top support W. 300 x D. 840, split sitting cushion, SX-DX
Terminal corner element W. 2940 mm - top support W. 300 x D. 940 mm, top support W. 300 x D. 840, full sitting cushion, SX-DX
Central element slanted 30° W. 2233 x D. 1438 mm, full sitting cushion
Central element slanted 30° W. 2320 x D. 1488 mm - armrest L. 100 mm, full sitting cushion
Central element slanted 30° W. 2493 x D. 1588 mm - armrest L. 300 mm, full sitting cushion
Central element slanted 30° W. 2493 x D. 1588 mm - top support W. 300 X D. 840 mm, full sitting cushion, SX-DX
Terminal element slanted 30° W. 2592 mm - top support W. 300 x D. 840 mm, armrest W. 100 mm, full sitting cushion
Terminal element slanted 30° W. 2792 mm - top support W. 300 x D. 840mm, armrest W. 300mm, full sitting cushion
Terminal element slanted 30° W. 2793 mm - top support W. 300 x D. 840/940 mm, full sitting cushion
Chaise longue W. 970 mm
Chaise longue W. 1170 mm
Chaise Longue W. 1470 mm - top support W. 300 x D. 1340 mm, SX-DX
Chaise longue W. 1070 mm - armrest W. 100 mm, SX-DX
Chaise longue L. 1270 mm - armrest W. 300 mm, SX-DX
Chaise longue W. 1270 mm - armrest W. 100 mm, SX-DX
Chaise longue slanted 45° W. 1727 x D. 1706 mm, full sitting cushion, Sx-DX
Chaise longue slanted 45° W. 1756 x D. 1706 mm, full sitting cushion, SX-DX
Pouf W. 970 mm
Pouf W. 970 mm
Pouf W. 1170 mm
Pouf W. 1170 mm
Cushion optional
Cushion optional
Bookcase element W. 970 mm
Bookcase element W. 1170 mm
Bookcase element W. 1470 mm
Bookcase element W. 1940 mm
Bookcase element W. 2040 mm
Bookcase element W. 2140 mm
Bookcase element W. 2240 mm
Bookcase element W. 2440 mm
Bookcase element W. 2540 mm
Bookcase element W. 2640 mm
Bookcase element W. 970 mm
Bookcase element W. 1170 mm
Bookcase element W. 1470 mm
Bookcase element W. 1940 mm
Bookcase element W. 2040 mm
Bookcase element W. 2140 mm
Bookcase element W. 2240 mm
Bookcase element W. 2340 mm
Bookcase element W. 2440 mm
Bookcase element W. 2540 mm
Bookcase element W. 2640 mm
Bookcase element W. 970 mm
Bookcase element W. 1170 mm
Bookcase element W. 1470 mm
Bookcase element W. 1940 mm
Bookcase element W. 2040 mm
Bookcase element W. 2140 mm
Bookcase element W. 2240 mm
Bookcase element W. 2340 mm
Bookcase element W. 2440 mm
Bookcase element W. 2540 mm
Bookcase element W. 2640 mm
Bookcase element W. 970 mm
Bookcase element W. 1170 mm
Bookcase element W. 1470 mm
Bookcase element W. 1940 mm
Bookcase element W. 2040 mm
Bookcase element W. 2140 mm
Bookcase element W. 2240 mm
Bookcase element W. 2340 mm
Bookcase element W. 2440 mm
Bookcase element W. 2640 mm
Bookcase element W. 2540 mm
Composition W. 3310 x D. 1470 mm
Composition W. 3610 x D. 1470 mm
Composition W. 3510 x D. 1470 mm
Composition W. 2940 x D. 3010 mm
Composition W. 3610 x D. 2940 mm
Composition W. 4210 x D. 3010 mm
Composition W. 3710 x D. 3210 mm
Composition W. 4163 x D. 3210 mm
Composition W. 4667 x D. 3010 mm
Composition W. 4220 x D. 1706
Composition W. 4110 x D. 4167 mm
Composition W. 4396 x D. 4096 mm
Composition W. 4966 x D. 3963 mm
Composition W. 5066 x D. 3510 mm
Composition W. 3300 x D. 3300 mm
Composition W. 3010 x D. 2540 mm
Composition W. 3210 x D. 2940 mm
Composition W. 3410 x P. 3010 mm
Composition W. 3410 x D. 2540 mm
Composition W. 3710 x P. 2910 mm
Composition W. 3910 x D. 3010 mm
Composition W. 3410 x D. 2540 mm
