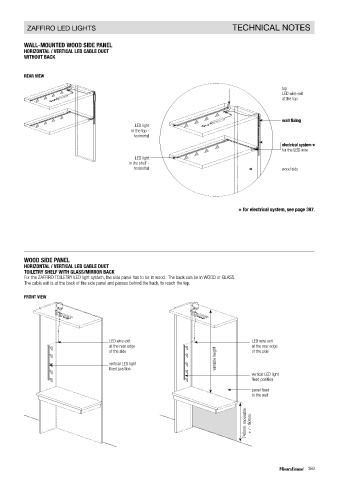

MILLIMETRICA walk-in wardrobe ZAFFIRO LED LIGHTS ZAFFIRO LED LIGHTS TECHNICAL NOTES

WOOD SIDE PANEL WALL-MOUNTED WOOD SIDE PANEL
HORIZONTAL / VERTICAL LED CABLE DUCT WITHOUT BACK HORIZONTAL / VERTICAL LED CABLE DUCT
WITHOUT BACK
For solutions WITHOUT A BACK and HORIZONTAL ZAFFIRO LED lights on the shelves, to allow the cables to pass, an ELECTRICALLY FITTED WOOD side panel is
required.
REAR VIEW REAR VIEW

top top
LED wire exit LED wire exit
at the top at the top
LED light
in the wood side
vertical wall fixing
LED light LED light
in the top - base for in the top -
horizontal wall-mounting horizontal
*
electrical system electrical system
*
for the LED wire for the LED wire
LED light LED light
in the shelf - in the shelf -
horizontal horizontal wood side
wood side

* for electrical system, see page 397. * for electrical system, see page 397.

FRAME SIDE PANEL WOOD SIDE PANEL
HORIZONTAL / VERTICAL LED CABLE DUCT WITHOUT BACK HORIZONTAL / VERTICAL LED CABLE DUCT
TOILETRY SHELF WITH GLASS/MIRROR BACK
For the ZAFFIRO TOILETRY LED light system, the side panel has to be in wood. The back can be in WOOD or GLASS.
REAR VIEW The cable exit is at the back of the side panel and passes behind the back, to reach the top.
top
LED wire exit FRONT VIEW
at the top
LED light
in the frame side
vertical
LED light
in the top - base for
horizontal wall-mounting LED wire exit LED wire exit
at the rear edge at the rear edge
of the side of the side

LED light vertical LED light variable height
in the shelf - fixed position
horizontal vertical LED light
fixed position
frame side
panel fixed
to the wall

740mm. moveable + / - 80mm.
