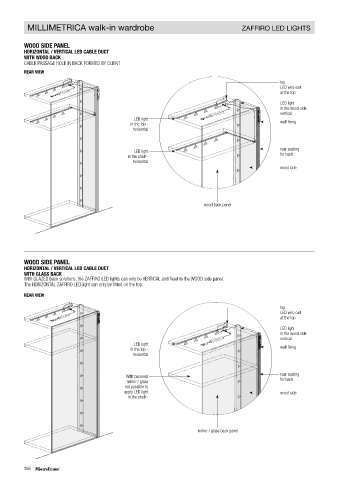

MILLIMETRICA walk-in wardrobe ZAFFIRO LED LIGHTS ZAFFIRO LED LIGHTS TECHNICAL NOTES

WOOD SIDE PANEL FRAME SIDE PANEL
HORIZONTAL / VERTICAL LED CABLE DUCT HORIZONTAL / VERTICAL LED CABLE DUCT
WITH WOOD BACK WITH WOOD BACK
CABLE PASSAGE HOLE IN BACK FORMED BY CLIENT
REAR VIEW REAR VIEW
top top
LED wire exit LED wire exit
at the top at the top
LED light LED light
in the wood side in the frame side
vertical vertical
LED light
in the top - wall fixing LED light wall fixing
horizontal in the top -
horizontal

LED light rear seating rear seating
in the shelf - for back LED light for back
horizontal in the shelf -
wood side horizontal
frame side

wood back panel wood back panel

WOOD SIDE PANEL FRAME SIDE PANEL
HORIZONTAL / VERTICAL LED CABLE DUCT HORIZONTAL / VERTICAL LED CABLE DUCT
WITH GLASS BACK WITH GLASS BACK
With GLAZED back solutions, the ZAFFIRO LED lights can only be VERTICAL and fixed to the WOOD side panel.
The HORIZONTAL ZAFFIRO LED light can only be fitted on the top.
REAR VIEW REAR VIEW

top top
LED wire exit LED wire exit
at the top at the top
LED light LED light
in the wood side in the frame side
vertical vertical
LED light LED light
in the top - wall fixing in the top - wall fixing
horizontal horizontal

With backrest rear seating With backrest rear seating
mirror / glass for back mirror / glass for back
not possible to not possible to
apply LED light wood side apply LED light frame side
in the shelf - in the shelf -

mirror / glass back panel mirror / glass back panel
