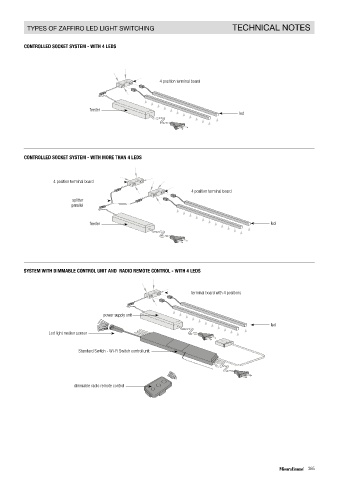

MILLIMETRICA walk-in wardrobe ZAFFIRO LED LIGHTS FOR WOOD / FRAME SIDE PANELS TYPES OF ZAFFIRO LED LIGHT SWITCHING TECHNICAL NOTES

ALL MISURAEMME LIGHTS HAVE A COLOR TEMPERATURE OF 3000K AND A COLOR RENDERING INDEX OF CRI 80. CONTROLLED SOCKET SYSTEM - WITH 4 LEDS
VERTICAL LED LIGHT applicable by request, see zaffiro lights chapter, page 417.

WOOD SIDE PANEL WITHOUT BACK WOOD PANEL WITHOUT BACK
START / END Th.38mm. CENTRAL Th.38mm.
wall-mounted wall-mounted wall-mounted wall-mounted
10 base base 10 base base 4 position terminal board

556/390 total depth 546/380 side panel depth LED light vertical LED light 556/390 total depth 546/380 side panel depth LED light vertical LED light feeder led

with guard, and light
with guard, and light
vertical
vertical
beam directed inwards
beam directed inwards
(optional)
(optional)
(optional)
(optional)
WOOD SIDE PANEL WITH BACK WOOD PANEL WITH BACK CONTROLLED SOCKET SYSTEM - WITH MORE THAN 4 LEDS
START / END Th.38mm. CENTRAL Th.38mm.
back seating back seating back seating
4 position terminal board
wall fixing wall fixing wall fixing
4 position terminal board
33 back seating 33 back seating back seating
splitter
parallel
576/413 total depth 546/380 side panel depth LED light 576/413 total depth 546/380 side panel depth LED light vertical LED light feeder led

with guard, and light
vertical
vertical
beam directed inwards
(optional)
(optional)
WOOD WALL-MOUNTED PANEL WITHOUT BACK (optional) SYSTEM WITH DIMMABLE CONTROL UNIT AND RADIO REMOTE CONTROL - WITH 4 LEDS
START / END / CENTRAL (WITHOUT LIGHTS)
wall fixing
4 terminal board with 4 positions

384 total depth 380 side panel depth power supply unit led

only applicable to shelves Led light motion sensor
and not side panels
Standard Switch - Wi-Fi Switch control unit

ALUMINIUM FRAME PANELS WITHOUT GLASS, WITHOUT BACK ALUMINIUM FRAME PANELS WITHOUT GLASS, WITH BACK
START / END / CENTRAL START / END / CENTRAL
back seating

10 wall-mounted base wall fixing dimmable radio remote control
33 back seating

390 total depth 380 frame depth 413 total depth 380 frame depth

optional vertical zaffiro
LED light
optional vertical zaffiro
LED light
