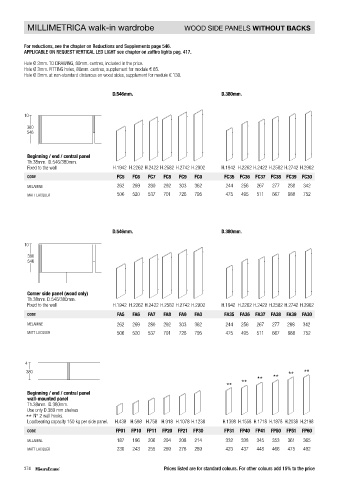

Page 376 - Night systems DOLI-NO22_3

MILLIMETRICA walk-in wardrobe WOOD SIDE PANELS WITHOUT BACKS WOOD SIDE PANELS WITH BACKS STRUCTURAL ELEMENTS

For reductions, see the chapter on Reductions and Supplements page 546. For reductions, see the chapter on Reductions and Supplements page 546.
APPLICABLE ON REQUEST VERTICAL LED LIGHT see chapter on zaffiro lights pag. 417. APPLICABLE ON REQUEST VERTICAL LED LIGHT see chapter on zaffiro lights pag. 417.
Hole Ø 3mm. TO DRAWING, 80mm. centres, included in the price. Hole Ø 3mm. TO DRAWING, 80mm. centres, included in the price.
Hole Ø 3mm. FITTING holes, 80mm. centres, supplement for module € 65. Hole Ø 3mm. FITTING holes, 80mm. centres, supplement for module € 65.
Hole Ø 3mm. at non-standard distances on wood sides, supplement for module € 130. Hole Ø 3mm. at non-standard distances on wood sides, supplement for module € 130.

D.546mm. D.380mm. D.546mm. D.380mm.

10 33
380 380
546 546

Beginning / end / central panel Beginning / end / central panel
Th.38mm. D.546/380mm. Th.38mm. D.546/380mm.
Fixed to the wall H.1942 H.2262 H.2422 H.2582 H.2742 H.2902 H.1942 H.2262 H.2422 H.2582 H.2742 H.2902 Fixed to the wall H.1942 H.2262 H.2422 H.2582 H.2742 H.2902 H.1942 H.2262 H.2422 H.2582 H.2742 H.2902
CODE FC5 FC6 FC7 FC8 FC9 FC0 FC35 FC36 FC37 FC38 FC39 FC30 CODE FCP5 FCP6 FCP7 FCP8 FCP9 FCP0 FCP35 FCP36 FCP37 FCP38 FCP39 FCP30
MELAMINE 262 269 280 292 303 362 244 256 267 277 288 342 MELAMINE 391 405 415 429 437 496 379 390 404 412 423 477
MATT LACQUER 506 520 537 701 726 795 475 495 511 667 688 752 MATT LACQUER 637 653 672 836 860 929 610 630 645 801 821 887

D.546mm. D.380mm. D.546mm. D.380mm.
33
10 33

380 380
546 546

Corner side panel (wood only)
Th.38mm. D.546/380mm. Corner side panel (wood only)
Fixed to the wall H.1942 H.2262 H.2422 H.2582 H.2742 H.2902 H.1942 H.2262 H.2422 H.2582 H.2742 H.2902 Th.38mm. Fixed to the wall H.1942 H.2262 H.2422 H.2582 H.2742 H.2902 H.1942 H.2262 H.2422 H.2582 H.2742 H.2902
CODE FA5 FA6 FA7 FA8 FA9 FA0 FA35 FA36 FA37 FA38 FA39 FA30 CODE FAP5 FAP6 FAP7 FAP8 FAP9 FAP0 FAP35 FAP36 FAP37 FAP38 FAP39 FAP30
MELAMINE 262 269 280 292 303 362 244 256 267 277 288 342 MELAMINE 391 405 415 429 437 496 379 390 404 412 423 477
MATT LACQUER 506 520 537 701 726 795 475 495 511 667 688 752 MATT LACQUER 637 653 672 836 860 929 610 630 645 801 821 887

4
380 ** ** **

** ** **
Beginning / end / central panel
wall-mounted panel
Th.38mm. D.380mm.
Use only D.380 mm shelves
N° 2 wall hooks.
** Supplement for electrical system for side panel without back
Loadbearing capacity 150 kg per side panel. H.438 H.598 H.758 H.918 H.1078 H.1238 H.1398 H.1558 H.1718 H.1878 H.2038 H.2198
In each module with light and without back, it is necessary to
CODE FP01 FP10 FP11 FP20 FP21 FP30 FP31 FP40 FP41 FP50 FP51 FP60 electrify both side panels.
MELAMINE 187 196 200 204 208 214 332 338 345 353 361 365 CODE FMFD4
MATT LACQUER 230 243 255 269 276 289 423 437 448 466 475 492 PRICE EACH 166

374 Prices listed are for standard colours. For other colours add 15% to the price Prices listed are for standard colours. For other colours add 15% to the price 375
