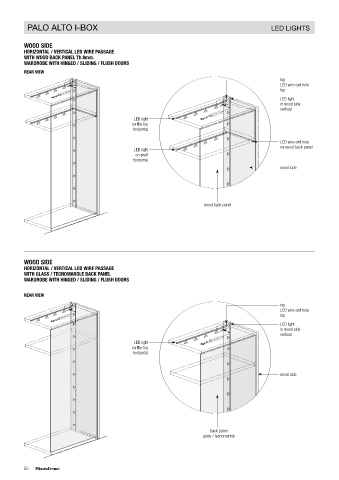

PALO ALTO I-BOX LED LIGHTS LED LIGHTS TECHNICAL NOTES

WOOD SIDE FRAME SIDE
HORIZONTAL / VERTICAL LED WIRE PASSAGE HORIZONTAL / VERTICAL LED WIRE PASSAGE
WITH WOOD BACK PANEL Th.8mm. WITH WOOD BACK PANEL Th.8mm.
WARDROBE WITH HINGED / SLIDING / FLUSH DOORS WARDROBE WITH HINGED / SLIDING / FLUSH DOORS
REAR VIEW REAR VIEW LED light
top in wood side
LED wire exit hole vertical
top
LED light top
in wood side LED wire exit hole
vertical top

LED light LED light
on the top on the top
horizontal horizontal
LED wire exit hole
on wood back panel
LED light LED light
on shelf on shelf
horizontal horizontal
wood side
frame side

wood back panel wood back panel

WOOD SIDE FRAME SIDE
HORIZONTAL / VERTICAL LED WIRE PASSAGE HORIZONTAL / VERTICAL LED WIRE PASSAGE
WITH GLASS / TECNOMARBLE BACK PANEL WITH GLASS / TECNOMARBLE BACK PANEL
WARDROBE WITH HINGED / SLIDING / FLUSH DOORS WARDROBE WITH HINGED / SLIDING / FLUSH DOORS

REAR VIEW REAR VIEW
LED light
top in wood side
LED wire exit hole vertical
top
LED light top
in wood side LED wire exit hole
vertical top
LED light LED light
on the top on the top
horizontal horizontal

wood side frame side

back panel back panel
glass / tecnomarble glass / tecnomarble
