Page 48 - Night systems DOLI-NO22_3

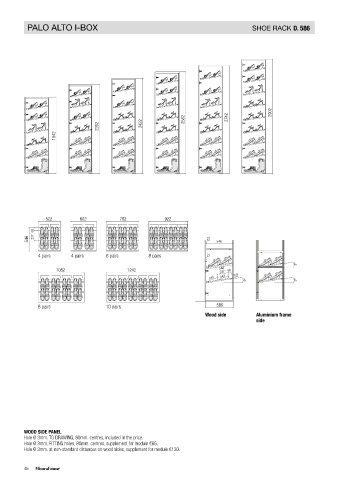

PALO ALTO I-BOX SHOE RACK D. 586 SHOE RACK - BOTTLE RACK D. 380 TECHNICAL NOTES

SHOE RACK

2902 2902
2742
2262 2422 2582 2262 2422 2582 2742
1942 1942

522 602 762 922 21 340
522 602 762 922 80 21
366
65
546 237 21 546 2 pairs 2 pairs 3 pairs 4 pairs 252 336 80
1082 1242 258 60
9°
4 pairs 4 pairs 6 pairs 8 pairs 21

9°
1082 1242 546 4 pairs 5 pairs 380
237 65
243 243 60
9° 9° Wood side Frame side
aluminium
WOOD SIDE PANEL
8 pairs 10 pairs 586 Hole Ø 3mm. TO DRAWING, 80mm. centres, included in the price.
Wood side Aluminium frame Hole Ø 3mm. FITTING holes, 80mm. centres, supplement for module € 65.
Hole Ø 3mm. at non-standard distances on wood sides, supplement for module € 130.
side

BOTTLE RACK

522 602 762 922

4 pz. 5 pz. 6 pz. 8 pz.
1082 1242
9°

WOOD SIDE PANEL
Hole Ø 3mm. TO DRAWING, 80mm. centres, included in the price. 9 pz. 11 pz. 380
Hole Ø 3mm. FITTING holes, 80mm. centres, supplement for module €66. Wood side Frame side
Hole Ø 3mm. at non-standard distances on wood sides, supplement for module €130. aluminium

46 47
