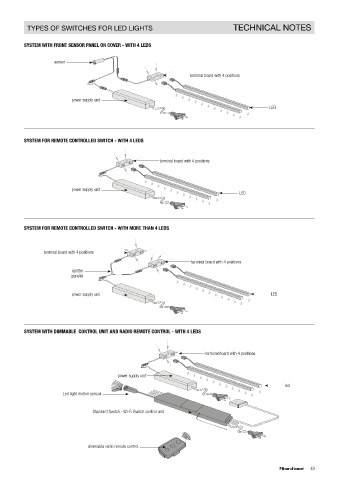

PALO ALTO I-BOX LED LIGHTS FOR WOOD / FRAME SIDES TYPES OF SWITCHES FOR LED LIGHTS TECHNICAL NOTES

ALL MISURAEMME LIGHTS HAVE A COLOR TEMPERATURE OF 3000K AND A COLOR RENDERING INDEX OF CRI 80. SYSTEM WITH FRONT SENSOR PANEL ON COVER - WITH 4 LEDS
WOOD SIDES WITH LED LIGHT
sensor
Th.19mm. Th.19mm. Th.38mm. Th.38mm.
terminal board with 4 positions
place for: place for: place for:
wood back panel wood back panel wood back panel
glass/mirror back panel glass/mirror back panel glass/mirror back panel
Tecnomarble back panel Tecnomarble back panel Tecnomarble back panel
power supply unit
LED
LED light LED light
vertical (optional) vertical (optional) LED light
vertical (optional)
UPPER SIDE PANEL STARTING / END STARTING / END CENTRAL
SYSTEM FOR REMOTE CONTROLLED SWITCH - WITH 4 LEDS

WOOD SIDES WITH LED LIGHT CARTER WITH LIGHT BEAM DIRECTED TOWARDS THE INTERIOR terminal board with 4 positions

Th.19mm. Th.19mm. Th.38mm. Th.38mm.
place for: place for: place for:
wood back panel wood back panel wood back panel power supply unit LED
glass/mirror back panel glass/mirror back panel glass/mirror back panel
Tecnomarble back panel Tecnomarble back panel Tecnomarble back panel

vertical LED light with cover vertical LED light with cover vertical LED light with cover
light beam directed light beam directed light beam directed
toward the interior (optional) toward the interior (optional) toward the interior (optional) SYSTEM FOR REMOTE CONTROLLED SWITCH - WITH MORE THAN 4 LEDS
UPPER SIDE PANEL STARTING / END STARTING / END CENTRAL

terminal board with 4 positions
terminal board with 4 positions
ALUMINIUM FRAME WITH LED LIGHT
splitter
parallel
place for: place for: place for: place for:
wood back panel wood back panel wood back panel wood back panel power supply unit LED
glass/mirror back panel
glass/mirror back panel
glass/mirror back panel
glass/mirror back panel
WITH GLASS Tecnomarble back panel WITHOUT GLASS Tecnomarble back panel WITH GLASS Tecnomarble back panel WITHOUT GLASS Tecnomarble back panel
LED light LED light LED light LED light
vertical (optional) vertical (optional) vertical (optional) vertical (optional)
SYSTEM WITH DIMMABLE CONTROL UNIT AND RADIO REMOTE CONTROL - WITH 4 LEDS
STARTING / END STARTING / END CENTRAL CENTRAL

terminal board with 4 positions

back panel back panel back panel back panel power supply unit
glass Th.4mm wood Th.8mm Tecnomarble Th.6mm mirror Th.4mm
led
Led light motion sensor
central glass panel Th.4mm closing glass panel Th.4mm Standard Switch - Wi-Fi Switch control unit

LED LED LED LED LED LED
dimmable radio remote control
