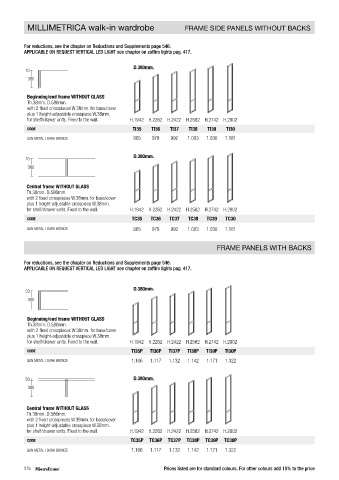

MILLIMETRICA walk-in wardrobe FRAME SIDE PANELS WITHOUT BACKS WOOD SIDE PANELS WITH BACKS STRUCTURAL ELEMENTS

For reductions, see the chapter on Reductions and Supplements page 546. N.B. FOR CORRECT USE SEE TECHNICAL NOTES PAGE - TYPES: CROSSPIECES/FRAME SIDE PANEL SUPPORTS.
APPLICABLE ON REQUEST VERTICAL LED LIGHT see chapter on zaffiro lights pag. 417.

D.380mm.
10
380 W.38mm.
movable on the beginning/
end/central frame without glass
Beginning/end frame WITHOUT GLASS Additional crosspieces
Th.38mm. D.586mm. on frame sides
with 2 fixed crosspieces W.38mm. for base/cover height adjustable
plus 1 height-adjustable crosspiece W.38mm. for shelves and chest of drawers
for shelf/drawer units. Fixed to the wall. H.1942 H.2262 H.2422 H.2582 H.2742 H.2902
CODE TR338
CODE TI35 TI36 TI37 TI38 TI39 TI30
GUN METAL / DARK BRONZE 86
GUN METAL / DARK BRONZE 965 978 992 1.003 1.030 1.181

D.380mm.
10
380
SINGLE W.31mm. DOUBLE W.38mm.
moveable on frame without glass moveable on frame without glass
Central frame WITHOUT GLASS end/central central for SIDE BY SIDE glass shelves
Th.38mm. D.586mm.
with 2 fixed crosspieces W.38mm. for base/cover Supports on frame panels
plus 1 height-adjustable crosspiece W.38mm. for glass shelves
for shelf/drawer units. Fixed to the wall. H.1942 H.2262 H.2422 H.2582 H.2742 H.2902
CODE REF31SX REF31DX REF38
CODE TC35 TC36 TC37 TC38 TC39 TC30
GUN METAL / DARK BRONZE 22 22 23
GUN METAL / DARK BRONZE 965 978 992 1.003 1.030 1.181

FRAME PANELS WITH BACKS

For reductions, see the chapter on Reductions and Supplements page 546. SINGLE W.31mm. DOUBLE W.38mm.
APPLICABLE ON REQUEST VERTICAL LED LIGHT see chapter on zaffiro lights pag. 417. moveable on frame without glass moveable on frame without glass
beginning/central central for SIDE BY SIDE shoe rack
shelves
D.380mm. Supports on frame panels
33
for inclined shoe rack shelves
380
CODE REF31PSX REF31PDX REF38P
GUN METAL / DARK BRONZE 26 26 27
Beginning/end frame WITHOUT GLASS
Th.38mm. D.586mm.
with 2 fixed crosspieces W.38mm. for base/cover
plus 1 height-adjustable crosspiece W.38mm.
for shelf/drawer units. Fixed to the wall. H.1942 H.2262 H.2422 H.2582 H.2742 H.2902
CODE TI35P TI36P TI37P TI38P TI39P TI30P
GUN METAL / DARK BRONZE 1.106 1.117 1.132 1.142 1.171 1.322

33 D.380mm.
380

Central frame WITHOUT GLASS
Th.38mm. D.586mm.
with 2 fixed crosspieces W.38mm. for base/cover
plus 1 height-adjustable crosspiece W.38mm.
for shelf/drawer units. Fixed to the wall. H.1942 H.2262 H.2422 H.2582 H.2742 H.2902
CODE TC35P TC36P TC37P TC38P TC39P TC30P
GUN METAL / DARK BRONZE 1.106 1.117 1.132 1.142 1.171 1.322

376 Prices listed are for standard colours. For other colours add 15% to the price For dark bronze 531, bronze 528, gesso 540 finishes, add a 15% surcharge 377
