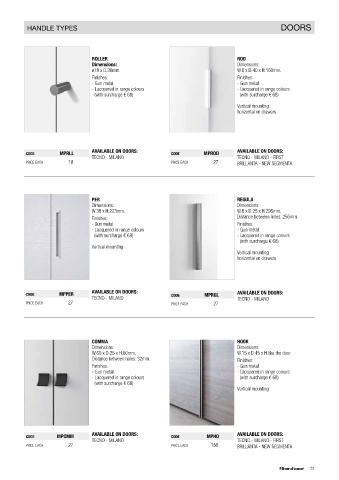

PALO ALTO I-BOX PUZZLE DOOR Designer: CRS HANDLE TYPES DOORS

HINGED PARTICULAR HINGE
Supplied with dedicated opening system, with 2 hinges applied on base and cover. For each pair of PUZZLE DOOR APPLIED
hinged doors, only one handle is mounted on the right-hand door. ON BASE AND TOP ROLLER ROD
Handles can be installed on both doors upon request. See the handles chapter starting on page 31. Dimensions: Dimensions:
165 ° opening hinge option. ø18 x D.36mm. W.6 x D.40 x H.160mm.
CORNER MODULE Finishes: Finishes:
Use 2 hinged doors W. 556 Each door must have a handle mounted on it. - Gun metal - Gun metal
- Lacquered in range colours - Lacquered in range colours
(with surcharge € 68) (with surcharge € 68)

Vertical mounting
horizontal on drawers

GLASS FACADE
PUZZLE DEDICATED CODE MPRLL AVAILABLE ON DOORS: CODE MPROD AVAILABLE ON DOORS:
HANDLE TECNO - MILANO TECNO - MILANO - FIRST
28 45 PRICE EACH 18 PRICE EACH 27 BRILLANTA - NEW SEGMENTA
Dimensions:
W.200 x D.45 x H.6mm.

FACADE TYPOLOGY
B hinged door PER REGULA
Dimensions: Dimensions:
W.38 x H.223mm. W.8 x D.25 x H.295mm.
Insert fixed with dual-component glue. Finishes: Distance between holes: 256mm.
- Gun metal Finishes:
- Lacquered in range colours - Gun metal
(with surcharge € 68) - Lacquered in range colours
(with surcharge € 68)
HINGED DOOR MODULARITY Vertical mounting
Vertical mounting
Note: mount locks only on pairs of doors. Locks cannot be installed on single doors.
horizontal on drawers
H 2882
H 2722
H 2562
H 2402
H 2242
H 1922 AVAILABLE ON DOORS: AVAILABLE ON DOORS:
CODE MPPER CODE MPRGL
H 1602 TECNO - MILANO TECNO - MILANO
PRICE EACH 27 PRICE EACH 27
H 1282
H 962
H 642

COMMA HOOK
W 396 W 476 W 556 W 636 (2 x 396) (2 x 476) (2 x 556) (2 x 636) Dimensions: Dimensions:
FOR MODULE W 362 W 442 W 522 W 602 W 762 W 922 W 1082 W 1242 W.60 x D.25 x H.60mm. W.15 x D.45 x H.like the door
Distance between holes: 32mm. Finishes:
Finishes: - Gun metal
- Gun metal - Lacquered in range colours
- Lacquered in range colours (with surcharge € 68)
(with surcharge € 68)
Vertical mounting

CODE MPCMM AVAILABLE ON DOORS: CODE MPHO AVAILABLE ON DOORS:
TECNO - MILANO TECNO - MILANO - FIRST
PRICE EACH 27 PRICE EACH 156 BRILLANTA - NEW SEGMENTA
