Page 29 - Night systems DOLI-NO22_3

PALO ALTO I-BOX REX DOOR Designer: CRS REX “RX6” DOOR Designer: CRS DOORS

HINGED Door frame in extruded aluminium profile with glass “RX6”
applied with seal or with panel covered in vertical vein

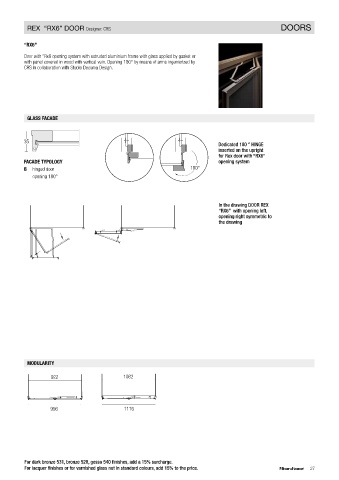

wood. Handle made inside the aluminium profile. Door with “Rx6 opening system with extruded aluminium frame with glass applied by gasket or
Dedicated hinge with 180° opening on exclusive project with panel covered in wood with vertical vein. Opening 180° by means of arms ingenierized by
®
for MisuraEmme . CRS in collaboration with Studio Decoma Design.
Two hinges positioned on the sides; they are equipped
with soft close slowing device and closure magnet.

GLASS FACADE GLASS FACADE

FACADE TYPOLOGY
B hinged door 35 35 Dedicated 180 ° HINGE
35
opening 180° inserted on the upright
for Rex door with “RX6”
FACADE TYPOLOGY opening system
B hinged door 180°
opening 180°
Starting/end side Central pieces Central pieces
+ upper side panel
19 19 38 38
In the drawing DOOR REX
“RX6” with opening left,
Upper side panel mandatory hinge dedicated hinge dedicated hinge dedicated hinge dedicated opening right symmetric to
the drawing

35

integrated handle integrated handle

Starting/end side
38

hinge dedicated

35

integrated handle

HINGED DOOR MODULARITY MODULARITY
H 2882
H 2722 922 1082
H 2562
H 2402
H 2240

956 1116

W 396 W 476 W 556 W 636 (2 x 396) (2 x 476) (2 x 556) (2 x 636)
FOR MODULE W 362 W 442 W 522 W 602 W 762 W 922 W 1082 W 1242
For dark bronze 531, bronze 528, gesso 540 finishes, add a 15% surcharge.
26 For lacquer finishes or for varnished glass not in standard colours, add 15% to the price. 27
