Page 30 - Night systems DOLI-NO22_3

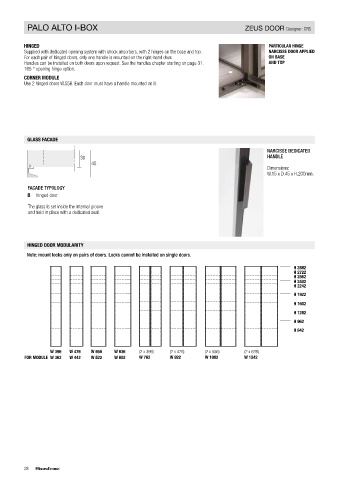

PALO ALTO I-BOX ZEUS DOOR Designer: CRS NARCISSE DOOR Designer: CRS DOORS

HINGED PARTICULAR HINGE HINGED PARTICULAR HINGE
Supplied with dedicated opening system with shock absorbers, with 2 hinges on the base and top. NARCISSE DOOR APPLIED Supplied with dedicated opening system, with 2 hinges applied on base and cover. For each pair of NARCISSE DOOR APPLIED
For each pair of hinged doors, only one handle is mounted on the right-hand door. ON BASE hinged doors, only one handle is mounted on the right-hand door. ON BASE AND TOP
Handles can be installed on both doors upon request. See the handles chapter starting on page 31. AND TOP Handles can be installed on both doors upon request. See the handles chapter starting on page 31.
165 ° opening hinge option. 165 ° opening hinge option.
CORNER MODULE CORNER MODULE
Use 2 hinged doors W.556. Each door must have a handle mounted on it. Use 2 hinged doors W. 556 Each door must have a handle mounted on it.
SLIDING/FLUSH
Supplied with sliding/straightening carriages with anti-collision pins.
For each external door, only one handle is mounted on the side opposite the opening direction.
Handles can be installed on both sides of the door upon request. See the handles chapter starting
on page 31.

GLASS FACADE GLASS FACADE
NARCISSE DEDICATED VARNISHED FRAME NARCISSE DEDICATED
30 HANDLE 28 35 HANDLE
45 100
Dimensions: 45 hinged sliding Dimensions:
W.15 x D.45 x H.200mm. W.15 x D.45 x H.200mm.

FACADE TYPOLOGY FACADE TYPOLOGY
B hinged door B hinged door
S sliding door
The glass is set inside the internal groove C flush door
and held in place with a dedicated seal.
Glass with screen printed frame is fixed with
dual-component glue. 100
35
25 25 25 25
HINGED DOOR MODULARITY HINGED DOOR MODULARITY
Note: mount locks only on pairs of doors. Locks cannot be installed on single doors. Note: mount locks only on pairs of doors. Locks cannot be installed on single doors.
H 2882
H 2882 H 2722
H 2722 H 2562
H 2562 H 2402
H 2402 H 2242
H 2242
H 1922
H 1922
H 1602
H 1602
H 1282
H 1282
H 962
H 962
H 642
H 642

W 396 W 476 W 556 W 636 (2 x 396) (2 x 476) (2 x 556) (2 x 636)
W 396 W 476 W 556 W 636 (2 x 396) (2 x 476) (2 x 556) (2 x 636) FOR MODULE W 362 W 442 W 522 W 602 W 762 W 922 W 1082 W 1242
FOR MODULE W 362 W 442 W 522 W 602 W 762 W 922 W 1082 W 1242
SLIDING AND FLUSH DOOR MODULARITY
H 2720
H 2560
H 2400
H 2240

W 805 sliding W 965 sliding W 1125 sliding
W 956 flush W 1116 flush
28 29
