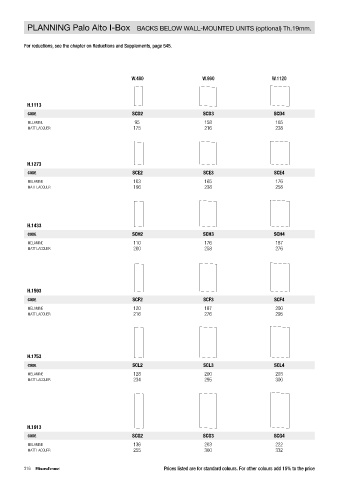

PLANNING Palo Alto I-Box BACKS BELOW WALL-MOUNTED UNITS (optional) Th.19mm. BACKS BELOW WALL-MOUNTED UNITS (optional) TH.19mm. WALL-MOUNTED BRIDGE

For reductions, see the chapter on Reductions and Supplements, page 545. For reductions, see the chapter on Reductions and Supplements, page 545.

W.480 W.960 W.1120

W.480 W.960 W.1120

H.1113 H.2073
CODE SCD2 SCD3 SCD4 CODE SCM2 SCM3 SCM4
MELAMINE 95 158 165 MELAMINE 145 222 256
MATT LACQUER 175 216 238 MATT LACQUER 273 332 382

H.1273
CODE SCE2 SCE3 SCE4
MELAMINE 103 165 176 H.2233
MATT LACQUER 196 238 258
CODE SCP2 SCP3 SCP4
MELAMINE 164 256 291
MATT LACQUER 291 382 433

H.1433
CODE SCH2 SCH3 SCH4
MELAMINE 110 176 187
MATT LACQUER 200 258 276

Back connection for corner
H.1593 160x608mm. H.1113 H.1273 H.1433 H.1593 H.1753 H.1913 H.2073 H.2233
CODE SCF2 SCF3 SCF4 CODE SCD8 SCE8 SCH8 SCF8 SCL8 SCG8 SCM8 SCP8
MELAMINE 120 187 200 MELAMINE 256 267 278 295 311 322 333 343
MATT LACQUER 216 276 295 MATT LACQUER 429 445 466 491 510 535 550 570

upper profile
H.1753
CODE SCL2 SCL3 SCL4 lower profile
MELAMINE 128 200 203 Pair or profiles
MATT LACQUER 234 295 300 for container fixing pair from 0mm to 2500mm. pair from 2501mm to 4300mm.
CODE PO250 PO430
NATURAL ALUMINIUM 291 518

H.1913
CODE SCG2 SCG3 SCG4
MELAMINE 136 203 222
MATT LACQUER 255 300 332

316 Prices listed are for standard colours. For other colours add 15% to the price Prices listed are for standard colours. For other colours add 15% to the price 317
