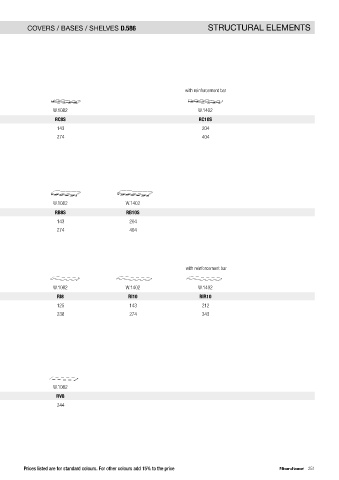

FLUSH Palo Alto I-Box COVERS / BASES / SHELVES D.586 COVERS / BASES / SHELVES D.586 STRUCTURAL ELEMENTS

For reductions in width and depth, see chapter on Reductions and Supplements pag. 545.
For shelves integrated in columns with aluminium frames, add relative height-adjustable crosspieces, see pag. 249.
APPLICABLE ON REQUEST HORIZONTAL LED LIGHT see chapter on zaffiro lights pag. 417.

with reinforcement bar

Covers
Th.38mm. - D.586mm. W.442 W.522 W.922 W.1082 W.1402
CODE RC3S RC4S RC7S RC8S RC10S
MELAMINE 94 98 127 143 204
MATT LACQUER 193 197 238 274 404

Bases
Th.38mm. - D.586mm. W.442 W.522 W.922 W.1082 W.1402
CODE RB3S RB4S RB7S RB8S RB10S
MELAMINE 94 98 127 143 204
MATT LACQUER 193 197 238 274 404

with reinforcement bar

Internal shelves
Th.38mm. D.546mm. W.442 W.522 W.922 W.1082 W.1402 W.1402
CODE RI3 RI4 RI7 RI8 RI10 RIR10
MELAMINE 81 85 106 125 143 212
MATT LACQUER 163 172 209 238 274 343

Internal glass shelves
Th.12mm. D.546mm.
With shelf-holder in nickel-plated
steel for mounting on wood side panels.
For mounting on frame side panels
see supports pag. 249. W.442 W.522 W.922 W.1082
CODE RV3 RV4 RV7 RV8
GLASS: V00 EXTRA LIGHT 138 160 229 244
V05 TRANSPARENT FUMÉ

250 Prices listed are for standard colours. For other colours add 15% to the price Prices listed are for standard colours. For other colours add 15% to the price 251
