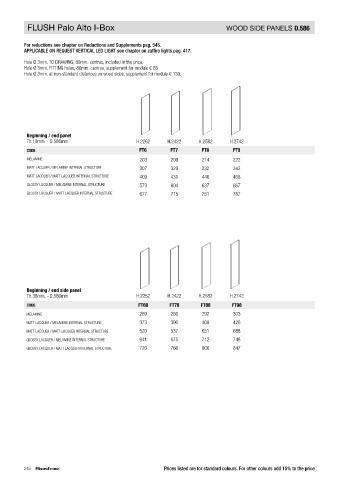

Page 248 - Night systems DOLI-NO22_3

FLUSH Palo Alto I-Box WOOD SIDE PANELS D.586 SIDE PANELS / UPPER SIDE PANELS IN WOOD D.586 STRUCTURAL ELEMENTS

For reductions see chapter on Reductions and Supplements pag. 545. For reductions see chapter on Reductions and Supplements pag. 545.
APPLICABLE ON REQUEST VERTICAL LED LIGHT see chapter on zaffiro lights pag. 417. APPLICABLE ON REQUEST VERTICAL LED LIGHT see chapter on zaffiro lights pag. 417.

Hole Ø 3mm. TO DRAWING, 80mm. centres, included in the price. Hole Ø 3mm. TO DRAWING, 80mm. centres, included in the price.
Hole Ø 3mm. FITTING holes, 80mm. centres, supplement for module € 65 Hole Ø 3mm. FITTING holes, 80mm. centres, supplement for module € 65.
Hole Ø 3mm. at non-standard distances on wood sides, supplement for module € 130. Hole Ø 3mm. at non-standard distances on wood sides, supplement for module € 130.

Beginning / end panel Central side panel
Th.19mm. - D.586mm. H.2262 H.2422 H.2582 H.2742 Th.38mm. - D.586mm. H.2262 H.2422 H.2582 H.2742
CODE FT6 FT7 FT8 FT9 CODE FC6 FC7 FC8 FC9
MELAMINE 203 209 214 222 MELAMINE 269 280 292 303
MATT LACQUER / MELAMINE INTERNAL STRUCTURE 307 320 332 342 MATT LACQUER 520 537 651 688
MATT LACQUER / MATT LACQUER INTERNAL STRUCTURE 409 431 446 466
GLOSSY LACQUER / MELAMINE INTERNAL STRUCTURE 573 604 637 667
GLOSSY LACQUER / MATT LACQUER INTERNAL STRUCTURE 677 715 751 787

Beginning / end side panel Upper side panel
Th.38mm. - D.586mm H.2262 H.2422 H.2582 H.2742 Th.19 - D.644mm. H.2262 H.2422 H.2582 H.2742
CODE FT68 FT78 FT88 FT98 CODE FV6 FV7 FV8 FV9
MELAMINE 269 280 292 303 MELAMINE 266 287 299 320
MATT LACQUER / MELAMINE INTERNAL STRUCTURE 373 390 409 426 MATT LACQUER 357 380 394 426
MATT LACQUER / MATT LACQUER INTERNAL STRUCTURE 520 537 651 688 GLOSSY LACQUER 912 967 1.020 1.138
GLOSSY LACQUER / MELAMINE INTERNAL STRUCTURE 641 675 712 748 WOOD 604 637 670 719
GLOSSY LACQUER / MATT LACQUER INTERNAL STRUCTURE 726 766 806 847

246 Prices listed are for standard colours. For other colours add 15% to the price Prices listed are for standard colours. For other colours add 15% to the price 247
