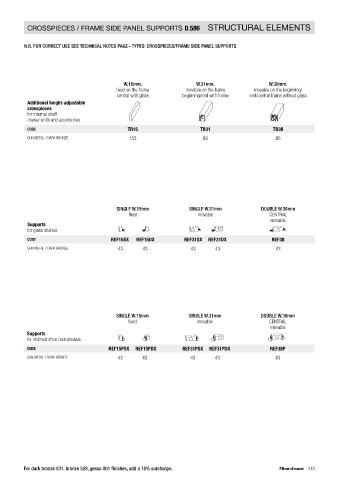

FLUSH Palo Alto I-Box FRAME SIDE PANELS D.586 CROSSPIECES / FRAME SIDE PANEL SUPPORTS D.586 STRUCTURAL ELEMENTS

For reductions see chapter on Reductions and Supplements pag. 545. N.B. FOR CORRECT USE SEE TECHNICAL NOTES PAGE - TYPES: CROSSPIECES/FRAME SIDE PANEL SUPPORTS.
APPLICABLE ON REQUEST VERTICAL LED LIGHT see chapter on zaffiro lights pag. 417.

W.15mm. W.31mm. W.38mm.
fixed on the frame movable on the frame movable on the beginning/
Beginning / end frame side panel WITH GLASS central with glass beginning/end with frame end/central frame without glass
Th.38mm. D586mm. Additional height-adjustable
with 2 fixed crosspieces W.38mm. for base / cover crosspieces
plus 1 height-adjustable crosspiece W.31mm. for internal shelf,
for shelf / drawer units H.2262 H.2422 H.2582 H.2742 drawer units and accessories

CODE TI6VS TI7VS TI8VS TI9VS CODE TR15 TR31 TR38
GUN METAL / DARK BRONZE - CATEGORY A GLASS 1.582 1.608 1.634 1.676 GUN METAL / DARK BRONZE 153 85 85
GUN METAL / DARK BRONZE - CATEGORY C GLASS 1.937 1.966 1.993 2.041
GUN METAL / DARK BRONZE - CATEGORY LUX GLASS 2.324 2.357 2.391 2.448

Central frame side panel WITH GLASS SINGLE W.15mm SINGLE W.31mm DOUBLE W.38mm
Th.38mm. D586mm. fixed movable CENTRAL
with 2 fixed crosspieces W.38mm. for base / cover movable
plus 1 height-adjustable crosspiece W.15mm. Supports
for shelf / drawer units H.2262 H.2422 H.2582 H.2742 for glass shelves
CODE TC6VS TC7VS TC8VS TC9VS CODE REF15SX REF15DX REF31SX REF31DX REF38
GUN METAL / DARK BRONZE - CATEGORY A GLASS 2.356 2.387 2.422 2.467 GUN METAL / DARK BRONZE 43 43 43 43 43
GUN METAL / DARK BRONZE - CATEGORY C GLASS 2.850 2.885 2.925 2.972
GUN METAL / DARK BRONZE - CATEGORY LUX GLASS 3.216 3.255 3.299 3.350

Central frame side panel WITHOUT GLASS SINGLE W.15mm SINGLE W.31mm DOUBLE W.38mm
Th.38mm. D586mm. fixed movable CENTRAL
with 2 fixed crosspieces W.38mm. for base / cover movable
plus 1 height-adjustable crosspiece W.38mm. Supports
for shelf / drawer units H.2262 H.2422 H.2582 H.2742 for inclined shoe rack shelves
CODE TC6S TC7S TC8S TC9S CODE REF15PSX REF15PDX REF31PSX REF31PDX REF38P
GUN METAL / DARK BRONZE 1.078 1.090 1.103 1.133 GUN METAL / DARK BRONZE 43 43 43 43 43
