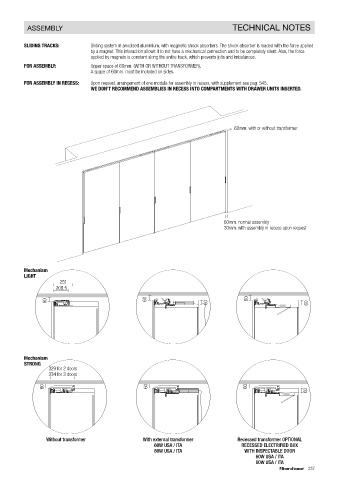

FLUSH Palo Alto I-Box DOOR OVERLAP ASSEMBLY TECHNICAL NOTES

WOOD SIDE PANELS SLIDING TRACKS: Sliding system in anodised aluminium, with magnetic shock absorbers. The shock absorber is loaded with the force applied
by a magnet. This interaction allows it to not have a mechanical connection and to be completely silent. Also, the force
19 38 19+19 applied by magnets is constant along the entire track, which prevents jolts and imbalances.
38
FOR ASSEMBLY: Upper space of 60mm. (WITH OR WITHOUT TRANSFORMER).
A space of 60mm. must be included on sides.

FOR ASSEMBLY IN RECESS: Upon request, arrangement of one module for assembly in recess, with supplement see pag. 545.
WE DON’T RECOMMEND ASSEMBLIES IN RECESS INTO COMPARTMENTS WITH DRAWER UNITS INSERTED.

60mm. with or without transformer

Beginning/end side panel Th.19mm. Beginning/end side panel Th.38mm. Finishing upper side panel Th.19mm. Central side panel Th.38mm.
Internal structure in melamine. in melamine, matt lacquer or (OPTIONAL). To be fixed to the side in melamine, matt lacquer.
External structure in melamine, matt melamine internal structure / matt / panel Th.19mm. wood.
lacquer, glossy lacquer. glossy lacquer external structure. Finishing: melamine, matt lacquer,
glossy lacquer, wood.

38

60mm. normal assembly
30mm. with assembly in recess upon request

Beginning / end side panel
Th.38mm. Mechanism
in melamine or matt lacquer with LIGHT
fixed / extendible infill profile. 251
208,5

60 60 60 60 60

FRAME SIDES

38 38 38

Mechanism
STRONG
329 for 2 doors
334 for 3 doors

60 60 60
60

Beginning/end frame WITH GLASS Central frame WITH GLASS Central frame WITHOUT GLASS

Without transformer With external transformer Recessed transformer OPTIONAL
60W USA / ITA RECESSED ELECTRIFIED BOX
80W USA / ITA WITH INSPECTABLE DOOR
60W USA / ITA
80W USA / ITA
