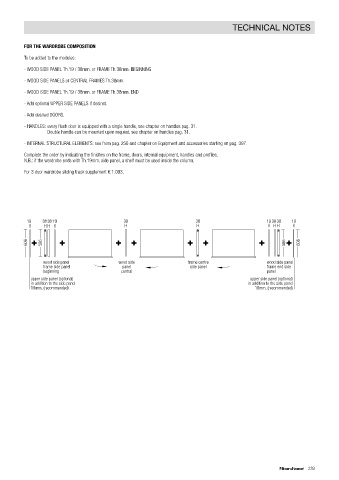

FLUSH Palo Alto I-Box MODULARITY TECHNICAL NOTES

MODULARITY IN WIDTH AND DEPTH FLUSH WARDROBE FOR THE WARDROBE COMPOSITION
The wardrobe size includes beginning / end side panels Th.19mm.
(optional: upper side panels, add 38mm.), alternatively with beginning / end side panel in wood Th.38mm. alternatively with beginning / end frames Th.38mm. To be added to the modules:
side panels in WOOD Th.19mm. - WOOD SIDE PANEL Th.19 / 38mm. or FRAME Th.38mm. BEGINNING
side panels IN WOOD / FRAME Th.38mm. side panels IN WOOD Th.19mm. with upper side panel Th.19mm.
- WOOD SIDE PANELS or CENTRAL FRAMES Th.38mm.

- WOOD SIDE PANEL Th.19 / 38mm. or FRAME Th.38mm. END
1920mm.
922 922 922 422 422
1958mm. - Add optional UPPER SIDE PANELS if desired.
- Add desired DOORS.
2240mm.
1082 1082 1082 522 522 - HANDLES: every flush door is equipped with a single handle, see chapter on handles pag. 31.
2278mm.
Double handle can be mounted upon request, see chapter on handles pag. 31.
- INTERNAL STRUCTURAL ELEMENTS: see from pag. 250 and chapter on Equipment and accessories starting on pag. 397.
2880mm.
922 922 922
2918mm. Complete the order by indicating the finishes on the frame, doors, internal equipment, handles and profiles.
N.B.: if the wardrobe ends with Th.19mm. side panel, a shelf must be used inside the column.
For 3 door wardrobe sliding track supplement € 1.093.
2880mm.
1402 1402 1402 922 422
2918mm.

3360mm.
1082 1082 1082
3398mm.

19 3838 19 38 38 19 3838 19
3840mm.
3878mm. 922 922 922 922
606 + + 586 + + + + + + + + + + + + 586 + + 606
4480mm.
1082 1082 1082 1082
4518mm.
wood side panel wood side frame centre wood side panel
frame side panel panel side panel frame end side
beginning central panel
upper side panel (optional) upper side panel (optional)
in addition to the side panel in addition to the side panel
19mm. (recommended) 19mm. (recommended)

238 239
