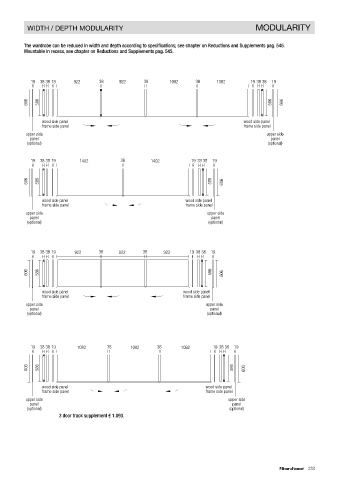

FLUSH Palo Alto I-Box HEIGHTS MODULARITY WIDTH / DEPTH MODULARITY MODULARITY

The wardrobe can be reduced in height according to specifications; see chapter on Reductions and Supplements pag. 545. The wardrobe can be reduced in width and depth according to specifications; see chapter on Reductions and Supplements pag. 545.
Mountable in recess, see chapter on Reductions and Supplements pag. 545.

H.2742 mm.
H.2582 mm. 19 38 38 19 922 38 922 38 1082 38 1082 19 38 38 19
H.2422 mm.
H.2262 mm.
606 586 586 606

wood side panel wood side panel
frame side panel frame side panel
upper side upper side
panel panel
(optional) (optional)

19 38 38 19 1402 38 1402 19 38 38 19

606 586 586 606

wood side panel wood side panel
frame side panel frame side panel
upper side upper side
panel panel
(optional) (optional)

19 38 38 19 922 38 922 38 922 19 38 38 19

606 586 586 606
SLIDING CARRIAGES
wood side panel wood side panel
251 329 for 2 doors 334 for 3 doors frame side panel frame side panel
208.5 LIGHT STRONG STRONG upper side upper side
panel panel
60 60 60 (optional) (optional)
38 38 38

19 38 38 19 1082 38 1082 38 1082 19 38 38 19

606 586 586 606

38 38 38 wood side panel wood side panel
17 60 17 60 17 60 frame side panel frame side panel
foot H.5 mm. foot H.5 mm. foot H.5 mm. (optional) 3 door track supplement € 1.093. (optional)
160 143 143 upper side upper side
panel
panel

Flush with 2 doors Flush with 2 doors Flush with 3 doors
for mod. 922-1082 for mod. 1402 for mod. 922-1082
