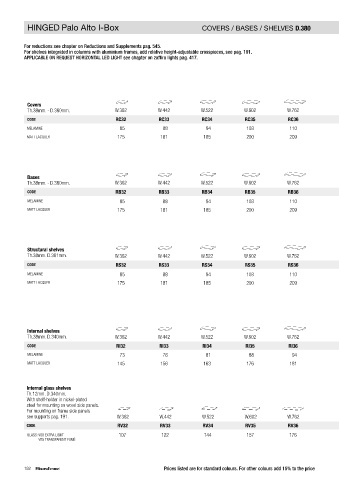

HINGED Palo Alto I-Box COVERS / BASES / SHELVES D.380 COVERS / BASES / SHELVES D.380 STRUCTURAL ELEMENTS

For reductions see chapter on Reductions and Supplements pag. 545.
For shelves integrated in columns with aluminium frames, add relative height-adjustable crosspieces, see pag. 191.
APPLICABLE ON REQUEST HORIZONTAL LED LIGHT see chapter on zaffiro lights pag. 417.

Covers
Th.38mm. - D.380mm. W.362 W.442 W.522 W.602 W.762 W.922 W.1082 W.1242
CODE RC32 RC33 RC34 RC35 RC36 RC37 RC38 RC39
MELAMINE 85 88 94 103 110 120 136 157
MATT LACQUER 175 181 185 200 209 227 262 311

Bases
Th.38mm. - D.380mm. W.362 W.442 W.522 W.602 W.762 W.922 W.1082 W.1242

CODE RB32 RB33 RB34 RB35 RB36 RB37 RB38 RB39
MELAMINE 85 88 94 103 110 120 136 157
MATT LACQUER 175 181 185 200 209 227 262 311

Structural shelves
Th.38mm. D.361mm. W.362 W.442 W.522 W.602 W.762 W.922 W.1082 W.1242

CODE RS32 RS33 RS34 RS35 RS36 RS37 RS38 RS39
MELAMINE 85 88 94 103 110 120 136 157
MATT LACQUER 175 181 185 200 209 227 262 311

Internal shelves
Th.38mm. D.340mm. W.362 W.442 W.522 W.602 W.762 W.922 W.1082 W.1242
CODE RI32 RI33 RI34 RI35 RI36 RI37 RI38 RI39
MELAMINE 73 76 81 88 94 101 119 130
MATT LACQUER 145 156 163 176 181 201 227 248

Internal glass shelves
Th.12mm. D.340mm.
With shelf-holder in nickel-plated
steel for mounting on wood side panels.
For mounting on frame side panels
see supports pag. 191. W.362 W.442 W.522 W.602 W.762 W.922 W.1082 W.1242
CODE RV32 RV33 RV34 RV35 RV36 RV37 RV38 RV39
GLASS: V00 EXTRA LIGHT 107 122 144 157 176 185 209 303
V05 TRANSPARENT FUMÉ

192 Prices listed are for standard colours. For other colours add 15% to the price Prices listed are for standard colours. For other colours add 15% to the price 193
