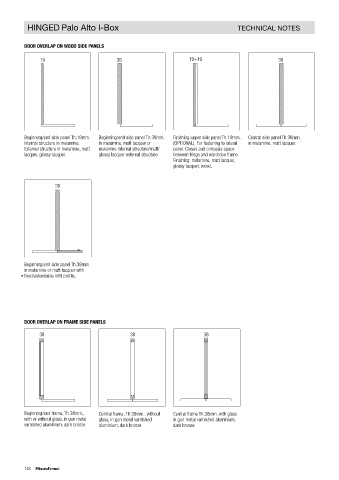

HINGED Palo Alto I-Box TECHNICAL NOTES TECHNICAL NOTES

DOOR OVERLAP ON WOOD SIDE PANELS FOR ASSEMBLY: Upper space of 20mm. WITHOUT TRANSFORMER.
Upper space of 70mm. WITH TRANSFORMER for LED LIGHTING SYSTEM ON COVER.
19 38 19+19 38 Upper space of 20mm. WITH TRANSFORMER RECESSED INTO THE COVER WITH INSPECTABLE DOOR.
(only for depth of 586mm.).
A space of 60mm. must be included on sides.

FOR ASSEMBLY IN RECESS: Upon request, arrangement of one module for assembly in recess, with supplement see pag. 545.
A space of 30mm. must be included on sides.
WE DO NOT RECOMMEND NICHE FITTING IN SPACES WITH A CHEST OF DRAWERS INCLUDED, AND WHEN FITTING A
ZEUS/NARCISSE DOOR.
NICHE FITTING WITH CORNER MODULE, NOT AVAILABLE

Beginning/end side panel Th.19mm. Beginning/end side panel Th.38mm. Finishing upper side panel Th.19mm. Central side panel Th.38mm. 20mm. without transformer
Internal structure in melamine. in melamine, matt lacquer or (OPTIONAL). For fastening to lateral in melamine, matt lacquer. 70mm. with transformer
External structure in melamine, matt melamine internal structure/matt/ panel. Closes and conceals space 20mm. with transformer recessed into the cover
lacquer, glossy lacquer. glossy lacquer external structure. between hinge and wardrobe frame.
Finishing: melamine, matt lacquer,
glossy lacquer, wood.

38

60mm. normal assembly
30mm. with assembly in recess upon request

DEPTH 586mm.

Beginning/end side panel Th.38mm
in melamine or matt lacquer with
fixed/extendable infill profile.
20 30 20
led
led
586

DOOR OVERLAP ON FRAME SIDE PANELS

38 38 38 Without transformer With external transformer Recessed transformer OPTIONAL
60W USA / ITA RECESSED ELECTRIFIED BOX
80W USA / ITA WITH INSPECTABLE DOOR
60W USA / ITA
DEPTH 380mm.
80W USA / ITA

20 30
led

Beginning/end frame, Th.38mm., Central frame, Th.38mm., without Central frame Th.38mm. with glass 380
with or without glass, in gun metal glass, in gun metal varnished in gun metal varnished aluminium,
varnished aluminium, dark bronze aluminium, dark bronze dark bronze

Without transformer With external transformer Recessed transformer
60W USA / ITA NOT AVAILABLE
80W USA / ITA
