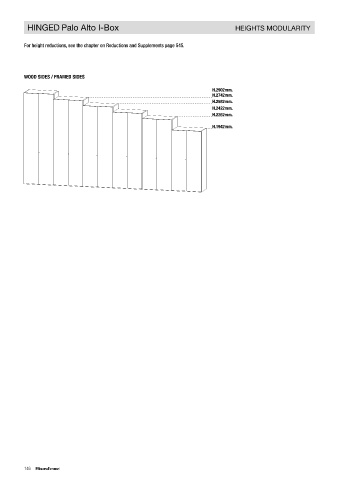

HINGED Palo Alto I-Box HEIGHTS MODULARITY WIDTH / DEPTH MODULARITY MODULARITY

For height reductions, see the chapter on Reductions and Supplements page 545. For width and depth reductions, see the chapter on Reductions and Supplements page 545.
Niche fitting possibility (excepting for corner module), see the chapter on Reductions and Supplements page 545.

WOOD SIDES / FRAMED SIDES STRUCTURE DEPTH 586mm.
WITH WOOD SIDES / FRAMED SIDES
H.2902mm.
H.2742mm. 38 38 38 38 38
H.2582mm. 19 38 38 19 362 442 522 602 762/922 1082/1242 19 38 38 19
H.2422mm.
H.2262mm.

H.1942mm. 606 586 586 606

wood side panel wood side panel
frame side panel frame side panel
upper side upper side
panel panel
(optional) (optional)

STRUCTURE DEPTH 380mm.
WITH WOOD SIDES / FRAME SIDES

19 38 38 19 362 38 442 38 522 38 602 38 762/922 38 1082/1242 19 38 38 19

400 380 380 400

wood side panel wood side panel
frame side panel frame side panel
upper side upper side
panel panel
(optional) (optional)
