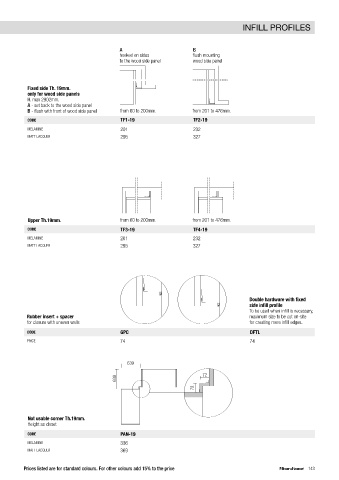

WALK-IN CLOSET Palo Alto I-Box BACKS D.586/380 INFILL PROFILES

For reductions see chapter on Reductions and Supplements pag. 545.
Possible also 885 PRIMO FIORE. * A B
hooked on sides
flush mounting
to the wood side panel wood side panel
Th.8mm. - wood
Th.4mm. - wood / mirror
Th.6mm. - tecnomarble
Fixed side Th. 19mm.
only for wood side panels
H. max 2902mm.
A - set back to the wood side panel
B - flush with front of wood side panel from 60 to 200mm. from 201 to 476mm.
CODE TF1-19 TF2-19
Backs W.1093 H.1872 H.2192 H.2352 H.2512 H.2672 H.2832
for module W.1082 H.1942 H.2262 H.2422 H.2582 H.2742 H.2902 MELAMINE 201 232
CODE S85 S86 S87 S88 S89 S80 MATT LACQUER 295 327
MELAMINE * 136 138 145 156 165 174
MATT LACQUER 270 274 288 303 314 332
CATEGORY A GLASS 679 702 732 763 824 1.108
CATEGORY C GLASS 1.087 1.125 1.170 1.220 1.318 1.948
CATEGORY LUX GLASS 1.535 1.587 1.652 1.721 1.860 2.509
TECNOMARBLE 2.064 2.414 2.864 3.058 3.255 3.450

Upper Th.19mm. from 60 to 200mm. from 201 to 476mm.
CODE TF3-19 TF4-19
MELAMINE 201 232
MATT LACQUER 295 327

Backs W.1253 H.1872 H.2192 H.2352 H.2512 H.2672 H.2832
for module W.1242 H.1942 H.2262 H.2422 H.2582 H.2742 H.2902
CODE S95 S96 S97 S98 S99 S90
MELAMINE 391 397 415 444 477 497
MATT LACQUER 777 787 827 867 903 951
CATEGORY A GLASS 783 810 842 875 - - Double hardware with fixed
CATEGORY C GLASS 1.251 1.295 1.348 1.403 - - side infill profile
CATEGORY LUX GLASS 1.767 1.830 1.909 1.982 - - Rubber insert + spacer To be used when infill is necessary,
maximum size to be cut on-site
TECNOMARBLE 2.614 3.060 3.283 3.506 3.730 3.955 for closure with uneven walls for creating more infill edges.
CODE GPC DFTL
PRICE 74 74

639

72
639
72

Backs W.1413 H.1872 H.2192 H.2352 H.2512 H.2672 H.2832
for module W.1402 H.1942 H.2262 H.2422 H.2582 H.2742 H.2902

CODE S105I S106I S107I S108I S109I S100I Not usable corner Th.19mm.
MELAMINE 441 446 469 500 539 562 Height as closet
MATT LACQUER 876 886 930 978 1.017 1.071 CODE PAN-19
TECNOMARBLE 2.948 3.452 3.702 3.955 4.206 4.458
MELAMINE 336
MATT LACQUER 369

142 Prices listed are for standard colours. For other colours add 15% to the price Prices listed are for standard colours. For other colours add 15% to the price 143
