LAYER SYSTEM TECHNICAL NOTES EXAMPLES OF MODULARITY PRODUCT SHEET

Sliding panels Compartment interior / recessed
These panels are constrained to the floor with a sliding pin, and anchored to the track A soft-close gasket Th.5mm. is mounted on the end panel.
with the carriages. Couplers allow the panel height to be adjusted by ± 7 mm. At the centre of tow sliding panels, bumpers are mounted (as an alternative to using shock absorbers).
Fixed panels
These panels are fastened to the floor and the track. Their weight is not supported by the
track. Couplers allow the panel height to be adjusted by ± 7 mm.

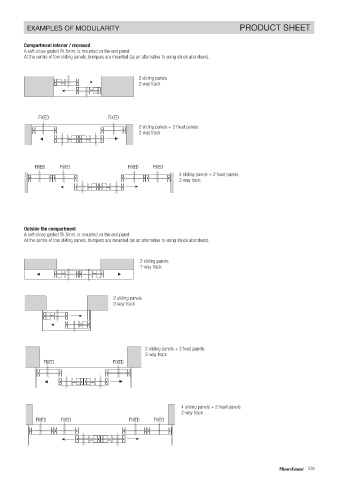

2 sliding panels
2-way track

112
FIXED FIXED
2 sliding panels + 2 fixed panels
Handle 2-way track
sliding fixed panels
panels

FIXED FIXED FIXED FIXED
4 sliding panels + 2 fixed panels
2-way track
6

Note: Standard wall anchors are supplied to fasten the tracks. The quality of Shock absorbers
mounting remains the client’s responsibility. The client must use the best systems Slow the opening and closing movement of the panel
for the type of walls/ceilings that the system is fastened to.
Outside the compartment
A soft-close gasket Th.5mm. is mounted on the end panel.
At the centre of tow sliding panels, bumpers are mounted (as an alternative to using shock absorbers).

2 sliding panels
1-way track
LAYER SYSTEM DIMENSIONS AND FINISHES

MOUNTING: Wall - Ceiling
2 sliding panels
DOOR FRAMES, TRACKS, GUARDS: Aluminium: varnished 524 gun metal, 531 dark bronze 2-way track
GLASS / MIRRORS: Tempered, Th.6mm.
Tempered, Th. 3+3mm., for varnished glass

REDUCTIONS: Both in height and in width
DIMENSIONS: Custom sizes
Max. height 3000mm, including the track 2 sliding panels + 2 fixed panels
Max. width, 1300mm 2-way track
FIXED FIXED

H. up to
2100mm.
2400mm.
2700mm. 4 sliding panels + 2 fixed panels
3000mm. 2-way track
track included FIXED FIXED FIXED FIXED

W.600÷900mm. W.901÷1100mm. W.1101÷1300mm.
