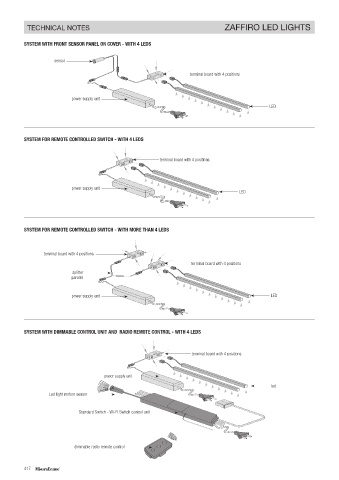

TECHNICAL NOTES ZAFFIRO LED LIGHTS
SYSTEM WITH FRONT SENSOR PANEL ON COVER - WITH 4 LEDS
sensor
terminal board with 4 positions
power supply unit
LED
SYSTEM FOR REMOTE CONTROLLED SWITCH - WITH 4 LEDS
terminal board with 4 positions
power supply unit
LED
SYSTEM FOR REMOTE CONTROLLED SWITCH - WITH MORE THAN 4 LEDS
terminal board with 4 positions
terminal board with 4 positions
splitter
parallel
power supply unit LED
drawer units
SYSTEM WITH DIMMABLE CONTROL UNIT AND RADIO REMOTE CONTROL - WITH 4 LEDS
terminal board with 4 positions
power supply unit
led
Led light motion sensor
drawer units
Standard Switch - Wi-Fi Switch control unit
dimmable radio remote control
designer GIANNI BORGONOVO
