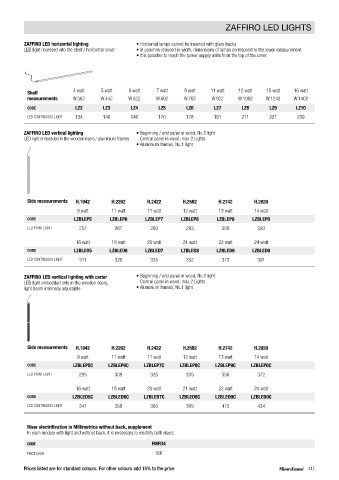

EQUIPMENT AND ACCESSORIES ZAFFIRO LED LIGHTS

ZAFFIRO LED horizontal lighting • Horizontal lamps cannot be inserted with glass backs.
LED light recessed into the shelf / horizontal cover • In columns reduced in width, dimensions of lamps correspond to the lower measurement.
• It is possible to reach the power supply units from the top of the cover.

546

282 380 LHS (RHS symmetrical) Shelf 4 watt 5 watt 6 watt 7 watt 9 watt 11 watt 12 watt 15 watt 16 watt
measurements W.362 W.442 W.522 W.602 W.762 W.922 W.1082 W.1242 W.1402
CODE LZ2 LZ3 LZ4 LZ5 LZ6 LZ7 LZ8 LZ9 LZ10
LED CONTINUOUS LIGHT 134 140 146 170 178 191 211 221 239
Doors for safe, Roller handle
Th.19mm.
only for use between wooden risers W.522 W.602 W.762 W.922 W.1082 ZAFFIRO LED vertical lighting • Beginning / end panel in wood, No.1 light
LED light embedded in the wooden risers / aluminium frames Central panel in wood, max 2 Lights
CODE ACAS4 ACAS5 ACAS6 ACAS7 ACAS8
• Aluminium frames, No.1 light
MELAMINE 303 316 343 572 605
MATT LACQUER 387 405 441 761 773

Side measurements H.1942 H.2262 H.2422 H.2582 H.2742 H.2920

Lock optional 9 watt 11 watt 11 watt 12 watt 13 watt 14 watt
CODE SERANT CODE LZBLEP5 LZBLEP6 LZBLEP7 LZBLEP8 LZBLEP9 LZBLEP0
LED POINT LIGHT 257 267 280 293 309 320
PRICE 278
16 watt 19 watt 20 watt 21 watt 22 watt 24 watt
CODE LZBLED5 LZBLED6 LZBLED7 LZBLED8 LZBLED9 LZBLED0
LED CONTINUOUS LIGHT 311 320 335 352 373 391

ZAFFIRO LED vertical lighting with carter • Beginning / end panel in wood, No.1 light
LED light embedded only in the wooden risers, Central panel in wood, max 2 Lights
light beam internally adjustable • Aluminium frames, No.1 light

Removable inspection
panel or compartment alone
on: cover, side panel, base
the removable panel always
requires a break-in Compartment with no edges Removable panel Side measurements H.1942 H.2262 H.2422 H.2582 H.2742 H.2920
CODE SCNB PATSP
9 watt 11 watt 11 watt 12 watt 13 watt 14 watt
MELAMINE - PRICE PER SQM. 926
CODE LZBLEP5C LZBLEP6C LZBLEP7C LZBLEP8C LZBLEP9C LZBLEP0C
MATT LACQUER - PRICE PER SQM. 1.093
LED POINT LIGHT 295 309 325 335 356 372
254
16 watt 19 watt 20 watt 21 watt 22 watt 24 watt
CODE LZBLED5C LZBLED6C LZBLED7C LZBLED8C LZBLED9C LZBLED0C
LED CONTINUOUS LIGHT 347 358 360 395 415 434

Riser electrification in Millimetrica without back, supplement
In each module with light and without back, it is necessary to electrify both risers.

CODE FMFD4
PRICE EACH 166

416 Prices listed are for standard colours. For other colours add 15% to the price Prices listed are for standard colours. For other colours add 15% to the price 417
