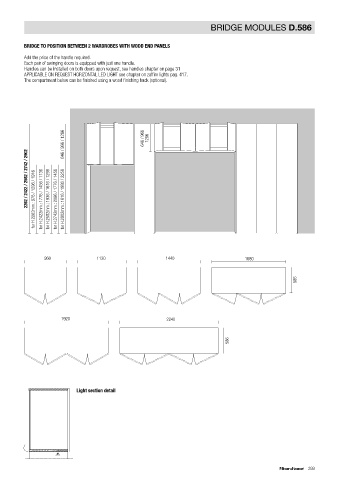

PLANNING Palo Alto I-Box OPEN COMPARTMENT D.586 BRIDGE MODULES D.586

BRIDGE TO POSITION BETWEEN 2 WARDROBES WITH WOOD END PANELS

Add the price of the handle required.
Each pair of swinging doors is equipped with just one handle.
Handles can be installed on both doors upon request, see handles chapter on page 31
APPLICABLE ON REQUEST HORIZONTAL LED LIGHT see chapter on zaffiro lights pag. 417.
The compartment below can be finished using a wood finishing back (optional).
Structural shelves
Th.38mm. D.566mm. W.522 W.922 W.1082 W.1242
CODE RS4 RS7 RS8 RS9
MELAMINE 98 127 143 164
MATT LACQUER 197 238 274 329
646 / 966 / 1286 646 / 966 1286

2262 / 2422 / 2582 / 2742 / 2902
H.916 H.916 H.916 H.1076 H.1076 H.1076

TV panels
Th.25mm. W.922 W.1082 W.1242 W.922 W.1082 W.1242 for H.2262mm.: 976 / 1296 / 1916 for H.2422mm.: 1776 / 1456 / 1136 for H.2582mm.: 1936 / 1616 / 1296 for H.2742mm.: 2096 / 1776 / 1456 for H.2902mm.: 1616 / 1936 / 2256

CODE PTV77 PTV87 PTV97 PTV78 PTV88 PTV98
MELAMINE 287 291 327 291 327 378
MATT LACQUER 336 347 382 347 382 433

960 1120 1440 1680

586
Mirror / glass
H.916mm.
to be attached to the back of
the open compartment
Th.4mm. W.522 W.922 W.1082 W.1242
CODE PV47 PV77 PV87 PV97 1920 2240
CATEGORY A GLASS / MIRROR 208 316 351 400

586

Light section detail
Mirror / glass
H.1076mm.
to be attached to the back of
the open compartment
Th.4mm. W.522 W.922 W.1082 W.1242

CODE PV48 PV78 PV88 PV98
CATEGORY A GLASS / MIRROR 244 369 410 472

298 Prices listed are for standard colours. For other colours add 15% to the price 299
