P. 297

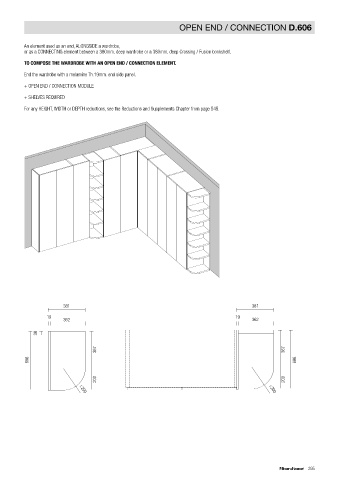

PLANNING Palo Alto I-Box BEVELLED COVERS / BASES / SHELVES / BACKS OPEN END / CONNECTION D.606
An element used as an end, ALONGSIDE a wardrobe,
or as a CONNECTING element between a 380mm. deep wardrobe or a 380mm. deep Crossing / Fusion bookshelf.
TO COMPOSE THE WARDROBE WITH AN OPEN END / CONNECTION ELEMENT.
End the wardrobe with a melamine Th.19mm. end side panel.
+ OPEN END / CONNECTION MODULE
LT bevel RT bevel
+ SHELVES REQUIRED
Covers
Th.38mm. W.442 W.442 For any HEIGHT, WIDTH or DEPTH reductions, see the Reductions and Supplements Chapter from page 545.
CODE RCTS RCTD
MELAMINE 107 107
MATT LACQUER 230 230
LT bevel RT bevel
Bases
Th.38mm. W.442 W.442
CODE RBTS RBTD
MELAMINE 107 107
MATT LACQUER 230 230
LT bevel RT bevel
Internal shelves
Th.38mm. W.442 W.442
CODE RITS RITD 381 381
MELAMINE 96 96 19 19
362 362
MATT LACQUER 175 175
38
367 367
606 606
200 r.200 200
r.200
Backs for bevel W.453
Also possible, 885 PRIMO FIORE. *
Th.8mm. H.2192 H.2352 H.2512 H.2672 H.2832
per module H.2262 H.2422 H.2582 H.2742 H.2902
CODE S36 S37 S38 S39 S30
*
MELAMINE 81 83 87 90 101
MATT LACQUER 163 172 175 182 193
294 Prices listed are for standard colours. For other colours add 15% to the price 295
