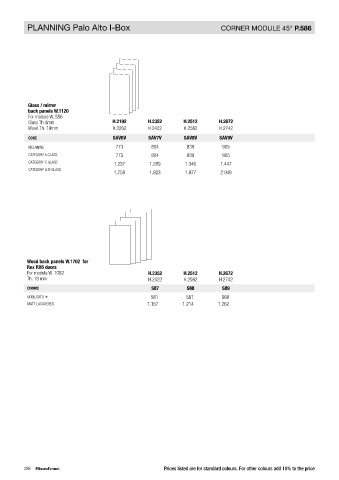

PLANNING Palo Alto I-Box CORNER MODULE 45° P.586 OUTSIDE CORNER MODULE

Module with 2 central wood panels, or 2 central frame panels with or without glass. Can be fitted with internal shelves.
Connection to modules, with any type of opening. Only reducible in height, see chapter on Reductions and Supplements pag. 545.

intermediate module
Glass / mirror
back panels W.1120
For module W. 556
Glass Th.4mm. H.2192 H.2352 H.2512 H.2672 only wood pillar
Wood Th. 19mm H.2262 H.2422 H.2582 H.2742 Th.19mm.

CODE SAV6V SAV7V SAV8V SAV9V 59 wood / frame panel
central
MELAMINE 773 804 839 905 59
CATEGORY A GLASS 773 804 839 905
CATEGORY C GLASS 1.237 1.289 1.340 1.447 door 662
CATEGORY LUX GLASS can be fitted with internal shelves
1.758 1.823 1.977 2.049

intermediate or start wood / frame panel
module central

door 686

Wood back panels W.1702 for
Rex RX6 doors
For module W. 1082 H.2352 H.2512 H.2672 Top
Th. 19 mm H.2422 H.2582 H.2742 Th.38mm. D.645mm. W.645

CODICE S87 S88 S89 CODE RCAE
*
NOBILITATO 581 581 668 MELAMINE 232
MATT LACQUERED 1.157 1.214 1.262 MATT LACQUER 343

Base
Th.38mm. D.645mm. W.645
CODE RBAE
MELAMINE 232
MATT LACQUER 343

Internal shelf Rear wood pillar
Th.38mm. D.624mm. W.624 Th.19mm. - 84x84mm. from H.2262 to H.2742mm.
CODE RIAE PPL
MELAMINE 232 422
MATT LACQUER 343 514

288 Prices listed are for standard colours. For other colours add 15% to the price Prices listed are for standard colours. For other colours add 15% to the price 289
