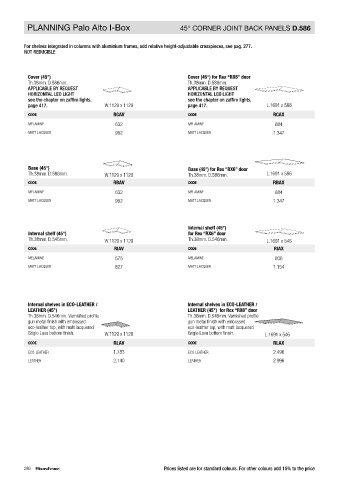

PLANNING Palo Alto I-Box 45° CORNER JOINT BACK PANELS D.586 45° CORNER JOINT BACK PANELS D.586 CORNER MODULE

For shelves integrated in columns with aluminium frames, add relative height-adjustable crosspieces, see pag. 277.
NOT REDUCIBLE

Cover (45°) Cover (45°) for Rex “RX6” door
Th.38mm. D.586mm. Th.38mm. D.586mm.
APPLICABLE BY REQUEST APPLICABLE BY REQUEST
HORIZONTAL LED LIGHT HORIZONTAL LED LIGHT Back vertical upright corner 45°
see the chapter on zaffiro lights, see the chapter on zaffiro lights, for hinged door 180°
page 417. W.1129 x 1129 page 417. L.1691 x 586 Aluminium 38x38mm. H.2262 H.2422 H.2582 H.2742

CODE RCAV CODE RCAX CODE MVA6 MVA7 MVA8 MVA9
MELAMINE 632 MELAMINE 884 GUN METAL / DARK BRONZE 742 753 761 781
MATT LACQUER 962 MATT LACQUER 1.347

Corner 45°front vertical upright for
Base (45°) Base (45°) for Rex “RX6” door Rex “RX6” door
Th.38mm. D.586mm. W.1129 x 1129 Th.38mm. D.586mm. L.1691 x 586 Aluminium 38x38mm.

CODE RBAV CODE RBAX APPLICABLE BY REQUEST VERTICAL
LED LIGHT
MELAMINE 632 MELAMINE 884 see the chapter on zaffiro lights,
page 417. H.2262 H.2422 H.2582 H.2742
MATT LACQUER 962 MATT LACQUER 1.347
CODE MVX6 MVX7 MVX8 MVX9
GUN METAL / DARK BRONZE 742 753 761 781
Internal shelf (45°)
Internal shelf (45°) for Rex “RX6” door
Th.38mm. D.546mm. W.1129 x 1129 Th.38mm. D.546mm. L.1691 x 546
CODE RIAV CODE RIAX
INTERNAL EQUIPMENT CORNER MODULE
MELAMINE 575 MELAMINE 806
MATT LACQUER 827 MATT LACQUER 1.154

Internal shelves in ECO-LEATHER / Internal shelves in ECO-LEATHER /
LEATHER (45°) LEATHER (45°) for Rex “RX6” door
Th.38mm. D.546mm. Varnished profile Th.38mm. D.546mm. Varnished profile
gun metal finish with embossed gun metal finish with embossed
eco-leather top, with matt lacquered eco-leather top, with matt lacquered Pair of clothes rails
Grigio Lava bottom finish. W.1129 x 1129 Grigio Lava bottom finish. L.1691 x 546 in metal

CODE RLAV CODE RLAX CODE TPAVN
ECO-LEATHER 1.783 ECO-LEATHER 2.496 GUN METAL 143
LEATHER 2.140 LEATHER 2.996

Pair of clothes rails for Rex “RX6” door
in metal W. 1406
CODE TPAXN
GUN METAL 182

286 Prices listed are for standard colours. For other colours add 15% to the price Prices listed are for standard colours. For other colours add 15% to the price 287
