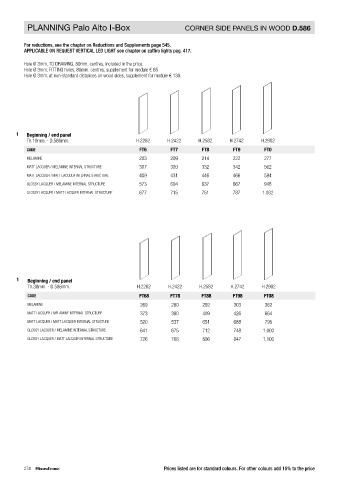

PLANNING Palo Alto I-Box CORNER SIDE PANELS IN WOOD D.586 CORNER SIDE PANELS / UPPER SIDE PANELS IN WOOD D.586 CORNER MODULE

For reductions, see the chapter on Reductions and Supplements page 545. For reductions, see the chapter on Reductions and Supplements page 545.
APPLICABLE ON REQUEST VERTICAL LED LIGHT see chapter on zaffiro lights pag. 417. APPLICABLE ON REQUEST VERTICAL LED LIGHT see chapter on zaffiro lights pag. 417.

Hole Ø 3mm. TO DRAWING, 80mm. centres, included in the price. Hole Ø 3mm. TO DRAWING, 80mm. centres, included in the price.
Hole Ø 3mm. FITTING holes, 80mm. centres, supplement for module € 65 Hole Ø 3mm. FITTING holes, 80mm. centres, supplement for module € 65
Hole Ø 3mm. at non-standard distances on wood sides, supplement for module € 130. Hole Ø 3mm. at non-standard distances on wood sides, supplement for module € 130.

1 Beginning / end panel Central side panel
Th.19mm. - D.586mm. H.2262 H.2422 H.2582 H.2742 H.2902 Th.38mm. - D.586mm. H.2262 H.2422 H.2582 H.2742 H.2902
CODE FT6 FT7 FT8 FT9 FT0 CODE FC6 FC7 FC8 FC9 FC0
MELAMINE 203 209 214 222 277 MELAMINE 269 280 292 303 362
MATT LACQUER / MELAMINE INTERNAL STRUCTURE 307 320 332 342 562 MATT LACQUER 520 537 651 688 795
MATT LACQUER / MATT LACQUER INTERNAL STRUCTURE 409 431 446 466 584
GLOSSY LACQUER / MELAMINE INTERNAL STRUCTURE 573 604 637 667 948
GLOSSY LACQUER / MATT LACQUER INTERNAL STRUCTURE 677 715 751 787 1.032

1 Beginning / end panel
Th.38mm. - D.586mm. H.2262 H.2422 H.2582 H.2742 H.2902
CODE FT68 FT78 FT88 FT98 FT08 90° CORNER BACK PANELS D.586 CORNER MODULE
MELAMINE 269 280 292 303 362
MATT LACQUER / MELAMINE INTERNAL STRUCTURE 373 390 409 426 664 For reductions, see the chapter on
Reductions and Supplements page 545.
MATT LACQUER / MATT LACQUER INTERNAL STRUCTURE 520 537 651 688 795 Possible also 885 PRIMO FIORE. *
GLOSSY LACQUER / MELAMINE INTERNAL STRUCTURE 641 675 712 748 1.000
GLOSSY LACQUER / MATT LACQUER INTERNAL STRUCTURE 726 766 806 847 1.100

2 Corner wood back
panel D.586mm.
Th.19mm.
VERTICAL LED LIGHT APPLICABLE
see the chapter on zaffiro lights, page 417 H.2262 H.2422 H.2582 H.2742 H.2902
CODE FG6 FG7 FG8 FG9 FG0
MELAMINE 203 209 214 222 277
MATT LACQUER 409 431 446 466 484

274 Prices listed are for standard colours. For other colours add 15% to the price Prices listed are for standard colours. For other colours add 15% to the price 275
