PLANNING Palo Alto I-Box TYPES OF CORNERS 90° CORNER MODULES D.586 CORNER MODULE

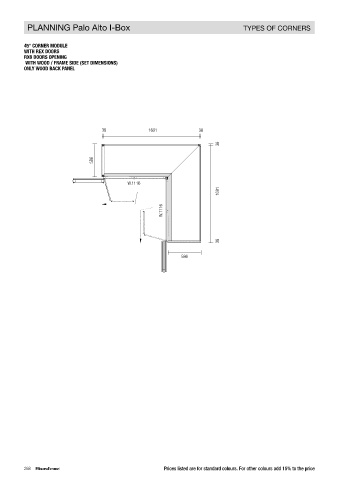

45° CORNER MODULE For interior equipment see from page 278 and Equipment and Accessories chapter from page 397.
WITH REX DOORS For reductions, see the chapter on Reductions and Supplements page 545.
RX6 DOORS OPENING For Narcisse and Zeus doors, add front upright.
WITH WOOD / FRAME SIDE (SET DIMENSIONS)
ONLY WOOD BACK PANEL
H.2262 H.2422 H.2582 H.2742 H.2902
1148 586 581

38 1691 38
melamine lacquered melamine lacquered melamine lacquered melamine lacquered melamine lacquered
38 CODE MA6 MA6 MA7 MA7 MA8 MA8 MA9 MA9 MA0 MA0

MELAMINE 1.233 1.781 1.255 1.803 1.279 1.827 1.307 1.855 1.458 2.006
586 MATT LACQUER 1.383 1.931 1.410 1.944 1.440 1.961 1.471 2.019 1.624 2.172
BACKS CATEGORY A GLASS 1.853 2.401 1.898 2.432 1.946 2.467 2.031 2.579 2.333 2.881
CATEGORY C GLASS
2.865
3.090
3.121
3.638
2.317
2.447
2.968
2.573
2.383
2.917
W.1116 CATEGORY LUX GLASS 2.838 3.386 2.917 3.451 3.084 3.605 3.175 3.723 3.686 4.234
1691 TECNOMARBLE 3.534 4.082 4.130 4.664 4.351 4.872 4.578 5.126 4.916 5.464
W.1116
38

586
45° CORNER MODULES D.586 CORNER MODULE

For interior equipment see from page 278 and Equipment and Accessories chapter from page 397.
For reductions, see the chapter on Reductions and Supplements page 545.
For Narcisse and Zeus doors, add front upright.

H.2262 H.2422 H.2582 H.2742
1129 1129

melamine lacquered melamine lacquered melamine lacquered melamine lacquered
CODE MA456 MA456 MA457 MA457 MA458 MA458 MA459 MA459
CATEGORY A GLASS 3.552 4.212 3.625 4.285 3.703 4.363 3.855 4.515
BACKS CATEGORY C GLASS 4.480 5.140 4.595 5.255 4.705 5.365 4.939 5.579

CATEGORY LUX GLASS 5.522 6.182 5.663 6.323 5.979 6.639 6.143 6.783

268 Prices listed are for standard colours. For other colours add 15% to the price Prices listed are for standard colours. For other colours add 15% to the price 269
