SLIDING Palo Alto I-Box TECHNICAL NOTES TECHNICAL NOTES

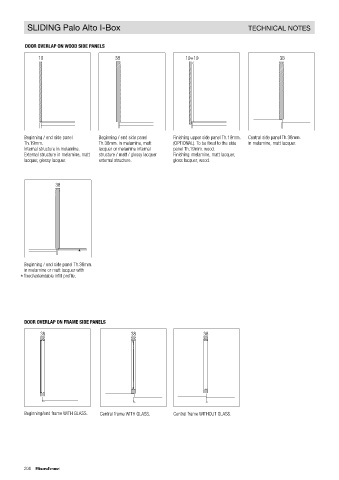

DOOR OVERLAP ON WOOD SIDE PANELS SLIDING RAILS: Sliding system in anodised aluminium, sliders with two different adjustments, spring loaded damper stops on closing and
opening, anti-collision pin, with supplement see pag. 545. Height required: 60mm.
19 38 19+19 38
FOR ASSEMBLY: Upper space of 40mm. WITHOUT TRANSFORMER.
Upper space of 40mm. WITH TRANSFORMER for LED LIGHTING SYSTEM ON COVER.
Upper space of 40mm. WITH TRANSFORMER RECESSED INTO THE COVER WITH INSPECTABLE DOOR.
A space of 60mm. must be included on sides.

FOR ASSEMBLY IN RECESS: Upon request, arrangement of one module for assembly in recess, with supplement see pag. 545.
A space of 60mm. must be included on sides.
WE DON’T RECOMMEND ASSEMBLIES IN RECESS INTO COMPARTMENTS WITH DRAWER UNITS INSERTED.

Beginning / end side panel Beginning / end side panel Finishing upper side panel Th.19mm. Central side panel Th.38mm.
Th.19mm. Th.38mm. in melamine, matt (OPTIONAL). To be fixed to the side in melamine, matt lacquer.
Internal structure in melamine. lacquer or melamine internal panel Th.19mm. wood. 40mm. without transformer
External structure in melamine, matt structure / matt / glossy lacquer Finishing: melamine, matt lacquer, 40mm. with transformer
lacquer, glossy lacquer. external structure. gloss lacquer, wood. 40mm. with transformer recessed
into the cover

38

60mm. normal assembly
30mm. with assembly in recess upon request

Beginning / end side panel Th.38mm.
in melamine or matt lacquer with
fixed/extendable infill profile.

DOOR OVERLAP ON FRAME SIDE PANELS
38 38 38

40 40 60 40 60

Beginning/end frame WITH GLASS. Central frame WITH GLASS. Central frame WITHOUT GLASS. Without transformer With external transformer Recessed transformer OPTIONAL
60W USA / ITA RECESSED ELECTRIFIED BOX
60W USA / ITA WITH INSPECTABLE DOOR
60W USA / ITA
60W USA / ITA
