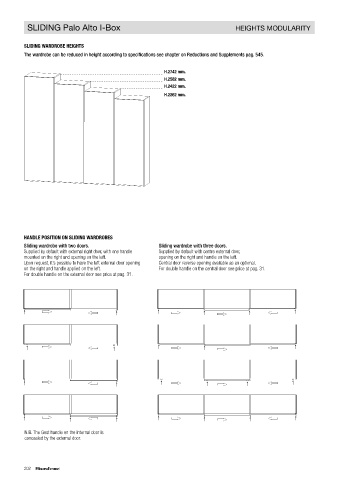

SLIDING Palo Alto I-Box HEIGHTS MODULARITY WIDTH / DEPTH MODULARITY MODULARITY

SLIDING WARDROBE HEIGHTS WIDTH AND DEPTH OF THE SLIDING WARDROBE
The wardrobe can be reduced in height according to specifications see chapter on Reductions and Supplements pag. 545. The wardrobe can be reduced in height, width and depth according to specifications; see chapter on Reductions and Supplements pag. 551.
Mountable in recess, see chapter on Reductions and Supplements pag. 545.

H.2742 mm.
H.2582 mm.
H.2422 mm.
H.2262 mm. 19 38 38 19 762 38 762 38 922 38 922 19 19

606 586 586 644

wood side panel * side
frame side panel panel
in wood
upper side upper side
panel panel
(optional) (required)

19 38 38 19 1082 38 1082 38 1402 38 1402 19 19

606 586 586 644

HANDLE POSITION ON SLIDING WARDROBES wood side panel * side
Sliding wardrobe with two doors. Sliding wardrobe with three doors. frame side panel panel
in wood
Supplied by default with external right door, with one handle Supplied by default with centre external door, upper side upper side
mounted on the right and opening on the left. opening on the right and handle on the left. panel panel
Upon request, it’s possible to have the left external door opening Central door reverse opening available as an optional. (optional) (required)
on the right and handle applied on the left. For double handle on the central door see price at pag. 31.
For double handle on the external door see price at pag. 31.
* N.B.: with external doors (beginning / end). The frame side panel can’t be inserted.

N.B. The Gost handle on the internal door is
concealed by the external door.
