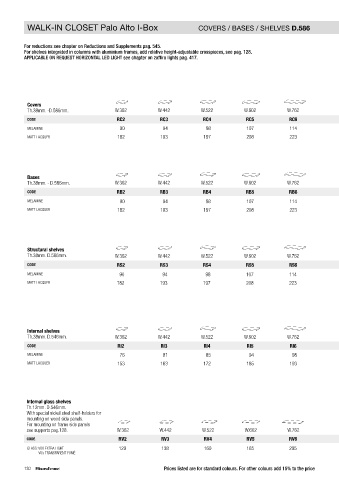

WALK-IN CLOSET Palo Alto I-Box COVERS / BASES / SHELVES D.586 COVERS / BASES / SHELVES D.586 STRUCTURAL ELEMENTS

For reductions see chapter on Reductions and Supplements pag. 545.
For shelves integrated in columns with aluminium frames, add relative height-adjustable crosspieces, see pag. 128.
APPLICABLE ON REQUEST HORIZONTAL LED LIGHT see chapter on zaffiro lights pag. 417.

with reinforcement bar

Covers
Th.38mm. -D.586mm. W.362 W.442 W.522 W.602 W.762 W.922 W.1082 W.1242 W.1402
CODE RC2 RC3 RC4 RC5 RC6 RC7 RC8 RC9 RC10
MELAMINE 90 94 98 107 114 127 143 164 204
MATT LACQUER 182 193 197 208 223 238 274 329 404

Bases
Th.38mm. - D.586mm. W.362 W.442 W.522 W.602 W.762 W.922 W.1082 W.1242 W.1402

CODE RB2 RB3 RB4 RB5 RB6 RB7 RB8 RB9 RB10
MELAMINE 90 94 98 107 114 127 143 164 204
MATT LACQUER 182 193 197 208 223 238 274 329 404

Structural shelves
Th.38mm. D.566mm. W.362 W.442 W.522 W.602 W.762 W.922 W.1082 W.1242 W.1402

CODE RS2 RS3 RS4 RS5 RS6 RS7 RS8 RS9 RS10
MELAMINE 90 94 98 107 114 127 143 164 204
MATT LACQUER 182 193 197 208 223 238 274 329 404

with reinforcement bar

Internal shelves
Th.38mm. D.546mm. W.362 W.442 W.522 W.602 W.762 W.922 W.1082 W.1242 W.1402 W.1402
CODE RI2 RI3 RI4 RI5 RI6 RI7 RI8 RI9 RI10 RIR10
MELAMINE 76 81 85 94 98 106 125 136 143 212
MATT LACQUER 153 163 172 185 193 209 238 262 274 343

Internal glass shelves
Th.12mm. D.546mm.
With special nickel steel shelf-holders for
mounting on wood side panels.
For mounting on frame side panels
see supports pag.128. W.362 W.442 W.522 W.602 W.762 W.922 W.1082 W.1242
CODE RV2 RV3 RV4 RV5 RV6 RV7 RV8 RV9
GLASS: V00 EXTRA LIGHT 120 138 160 185 205 229 244 334
V05 TRANSPARENT FUMÉ

130 Prices listed are for standard colours. For other colours add 15% to the price Prices listed are for standard colours. For other colours add 15% to the price 131
