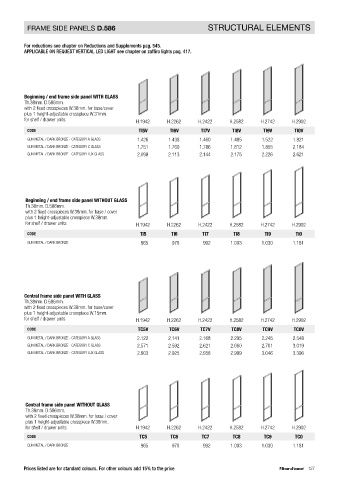

WALK-IN CLOSET Palo Alto I-Box WOOD SIDE PANELS D.586 FRAME SIDE PANELS D.586 STRUCTURAL ELEMENTS

For reductions in height and depth see chapter on Reductions and Supplements pag. 545. For reductions see chapter on Reductions and Supplements pag. 545.
APPLICABLE ON REQUEST VERTICAL LED LIGHT see chapter on zaffiro lights pag. 417. APPLICABLE ON REQUEST VERTICAL LED LIGHT see chapter on zaffiro lights pag. 417.
Hole Ø 3mm. TO DRAWING, 80mm. centres, included in the price.
Hole Ø 3mm. FITTING holes, 80mm. centres, supplement for module € 65.
Hole Ø 3mm. at non-standard distances on wood sides, supplement for module € 130.

Beginning / end frame side panel WITH GLASS
Th.38mm. D.586mm.
with 2 fixed crosspieces W.38mm. for base/cover
plus 1 height-adjustable crosspiece W.31mm.
for shelf / drawer units H.1942 H.2262 H.2422 H.2582 H.2742 H.2902
WOOD side panel CODE TI5V TI6V TI7V TI8V TI9V TI0V
beginning/end side panel GUN METAL / DARK BRONZE - CATEGORY A GLASS 1.426 1.438 1.460 1.485 1.522 1.821
Th.38mm. H.1942 H.2262 H.2422 H.2582 H.2742 H.2902
GUN METAL / DARK BRONZE - CATEGORY C GLASS 1.751 1.760 1.786 1.812 1.855 2.184
CODE FT58 FT68 FT78 FT88 FT98 FT08 GUN METAL / DARK BRONZE - CATEGORY LUX GLASS 2.098 2.113 2.144 2.175 2.226 2.621
MELAMINE 262 269 280 292 303 362
MATT LACQUER 506 520 537 651 688 795

Beginning / end frame side panel WITHOUT GLASS
Th.38mm. D.586mm.
with 2 fixed crosspieces W.38mm. for base / cover
plus 1 height-adjustable crosspiece W.38mm.
for shelf / drawer units H.1942 H.2262 H.2422 H.2582 H.2742 H.2902

CODE TI5 TI6 TI7 TI8 TI9 TI0
Central WOOD side panel GUN METAL / DARK BRONZE 965 978 992 1.003 1.030 1.181
Th.38mm. H.1942 H.2262 H.2422 H.2582 H.2742 H.2902
CODE FC5 FC6 FC7 FC8 FC9 FC0
MELAMINE 262 269 280 292 303 362
MATT LACQUER 506 520 537 651 688 795

Central frame side panel WITH GLASS
Th.38mm. D.586mm.
with 2 fixed crosspieces W.38mm. for base/cover
plus 1 height-adjustable crosspiece W.15mm.
for shelf / drawer units H.1942 H.2262 H.2422 H.2582 H.2742 H.2902

CODE TC5V TC6V TC7V TC8V TC9V TC0V
GUN METAL / DARK BRONZE - CATEGORY A GLASS 2.122 2.141 2.168 2.205 2.245 2.548
GUN METAL / DARK BRONZE - CATEGORY C GLASS 2.571 2.592 2.621 2.660 2.701 3.019
GUN METAL / DARK BRONZE - CATEGORY LUX GLASS 2.903 2.925 2.958 2.999 3.046 3.396

Central frame side panel WITHOUT GLASS
Th.38mm. D.586mm.
with 2 fixed crosspieces W.38mm. for base / cover
plus 1 height-adjustable crosspiece W.38mm.
for shelf / drawer units H.1942 H.2262 H.2422 H.2582 H.2742 H.2902
CODE TC5 TC6 TC7 TC8 TC9 TC0
GUN METAL / DARK BRONZE 965 978 992 1.003 1.030 1.181

126 Prices listed are for standard colours. For other colours add 15% to the price Prices listed are for standard colours. For other colours add 15% to the price 127
