Page 88 - Palo Alto Wall DOLI-PW22-3

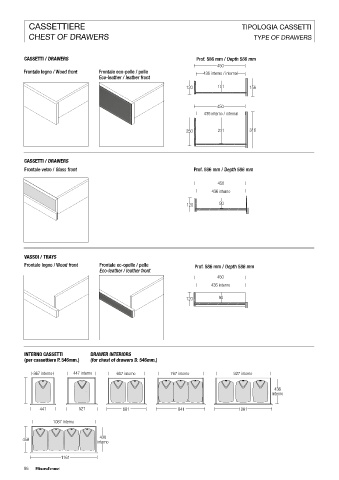

CASSETTIERE TIPOLOGIA CASSETTI CASSETTIERE NOTE TECNICHE
CHEST OF DRAWERS TYPE OF DRAWERS CHEST OF DRAWERS TECHNICAL NOTES

CASSETTI / DRAWERS Prof. 586 mm / Depth 586 mm SEZIONI CASSETTIERE INTERNE / INTERNAL CHEST OF DRAWERS SECTIONS
450 Retro finita / Finished back panel
Frontale legno / Wood front Frontale eco-pelle / pelle 436 interno / internal
Eco-leather / leather front cassettiera base / base drawer unit cassettiera sospesa / hanging drawer unit
546 546
120 101 156 450 19 450 19

450
436 interno / internal
NB: anzichè due cassetti
H.160 è possibile posizionare
un cassetto H.320mm.
250 231 316 Note: instead of two
drawers with H.160
it is possible to use
a single drawer H.320mm.

CASSETTI / DRAWERS SEZIONI CASSETTIERE STANDARD CON VASSOIO PORTASCARPE ESTRAIBILE
STANDARD CHEST OF DRAWERS WITH EXTRACTABLE SHOE RACK TRAY SECTIONS
Frontale vetro / Glass front Prof. 586 mm / Depth 586 mm

450 cassettiera base - bifacciale cassettiera sospesa - bifacciale
con vassoio portascarpe estraibile con vassoio portascarpe estraibile
436 interno base chest of drawers - biface hanging chest of drawers - biface
with pull out shoe rack tray 546 with pull out shoe rack tray
120 90 450

546 320 546
450 450

320 320
VASSOI / TRAYS
Frontale legno / Wood front Frontale ec-opelle / pelle Prof. 586 mm / Depth 586 mm
Eco-leather / leather front 320 320
450
436 interno
NB: Vassoio
120 90 portascarpe estraibile
inseribile solo in un
450 vano H.320mm.
450 450 450 436 Note: The pull out
55 175 shoe rack tray
can be inserted only
120 in a compartment
H.320mm.

INTERNO CASSETTI DRAWER INTERIORS ORGANIZZAZIONE VASSOIO PORTASCARPE (PER CASSETTIERE P. 546mm.)
(per cassettiere P. 546mm.) (for chest of drawers D. 546mm.) SHOE RACK TRAY ORGANISATION (FOR CHEST OF DRAWERS D. 546mm)

367 interno 447 interno 607 interno 767 interno 927 interno
367 447 607 767 927

436
interno
450 436
441 521 681 841 1001
441 521 681 841 1001
1087 interno 1087

450 436
interno 436
450
1161
1161
86 87
