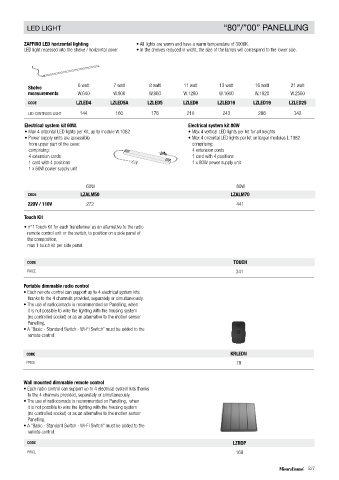

“80”/”00” PANELLING ACCESSORIES LED LIGHT “80”/”00” PANELLING

Supplement for reductions, see page 547. ZAFFIRO LED horizontal lighting • All lights are warm and have a warm temperature of 3000K.
LED light recessed into the shelve / horizontal cover • In the shelves reduced in widht, the size of the lamps will correspond to the lower size.
MATT GLOSSY
CODE MELAMINE WOOD
LACQUER LACQUER
Shelves Th.38mm.
Hidden shelf bracket recommended, not
included in the price. Shelve 6 watt 7 watt 8 watt 11 watt 13 watt 16 watt 21 watt
W. 640mm. (2 shelf brackets) D.304 L. 640 MS4 171 189 263 251 measurements W.640 W.800 W.960 W.1280 W.1600 W.1920 W.2560
W. 800mm. (2 shelf brackets) L. 800 MS5AM 181 200 278 260 LZLED4 LZLED5A LZLED5 LZLED6 LZLED16 LZLED19 LZLED25
W. 960mm. (2 shelf brackets) L. 960 MS5 211 234 351 311 CODE
W.1280mm. (3 shelf brackets) LED CONTINUOS LIGHT 144 160 176 210 243 286 342
W.1600mm. (3 shelf brackets) L.1280 MS6 274 306 470 393
W.1920mm. (3 shelf brackets) L.1600 MS7 316 353 540 456 Electrical system kit 60W. Electrical system kit 80W
W.2560mm. (4 shelf brackets) L.1920 MS8 365 407 642 515 • Max 4 orizontal LED lights per Kit, up to module W.1082 • Max 4 vertical LED lights per kit for all heights
For optional LED, see page 533. L.2560 MS66 446 497 830 637 • Power supply units are accessible • Max 4 orizontal LED lights per kit on larger modules L.1082
from upper part of the cover. comprising:
comprising: 4 extension cords
4 extension cords 1 card with 4 positions
D.380 L. 640 MS48 211 234 325 313 1 card with 4 positions 1 x 80W power supply unit
L. 800 MS5A8M 225 245 390 325 1 x 60W power supply unit
L. 960 MS58 266 295 434 375
L.1280 MS68 342 382 573 492
L.1600 MS78 394 438 659 566 60W 80W
L.1920 MS88 459 510 806 645 CODE LZALM50 LZALM70
L.2560 MS668 564 626 1.036 795 220V / 110V 272 441

Touch Kit
• n°1 Touch Kit for each transformer as an alternative to the radio
Hidden shelf bracket remote control unit or the switch, to position on a side panel of
CODE PRICE the composition,
max 1 touch kit per side panel.
each REG1 13

CODE TOUCH
PRICE 341
Grooved with ledge
CODE PRICE Portable dimmable radio control
• Each remote control can support up to 4 electrical system kits
each RS5 97 thanks to the 4 channels provided, separately or simultaneously.
• The use of radiocomado is recommended on Panelling, when
it is not possible to wire the lighting with the housing system
(no controlled socket) or as an alternative to the motion sensor
Panelling.
• A “Basic - Standard Switch - Wi-Fi Switch” must be added to the
remote control.

CODE KRLEDN
PRICE 78

Wall mounted dimmable remote control
• Each radio control can support up to 4 electrical system kits thanks
to the 4 channels provided, separately or simultaneously.
• The use of radiocomado is recommended on Panelling, when
it is not possible to wire the lighting with the housing system
(no controlled socket) or as an alternative to the motion sensor
Panelling.
• A “Basic - Standard Switch - Wi-Fi Switch” must be added to the
remote control.
CODE LZRDP
PRICE 169

Prices listed are for standard colours. For other colours add 15% to the price
527
526 For antiqued finish lacquer, add 35% only on the 3 colours available, see page 6. 527
