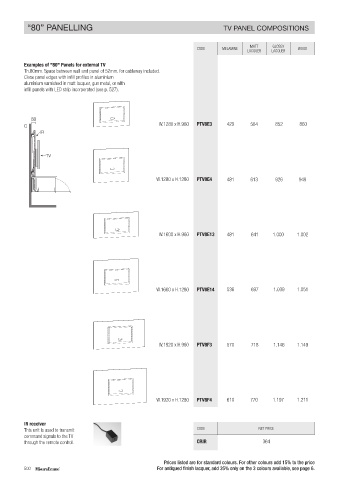

“80” PANELLING TV PANEL COMPOSITIONS

MATT GLOSSY
CODE MELAMINE WOOD
LACQUER LACQUER
Examples of "80" Panels for external TV
Th.80mm. Space between wall and panel of 52mm. for cableway included.
Close panel edges with infill profiles in aluminium
aluminium varnished in matt lacquer, gun metal, or with
infill panels with LED strip incorporated (see p. 527).

80
C W.1280 x H.960 PTV8E3 429 564 852 860
IR

TV

W.1280 x H.1280 PTV8E4 481 613 926 949

W.1600 x H.960 PTV8E13 481 641 1.000 1.002

W.1600 x H.1280 PTV8E14 536 697 1.039 1.051

W.1920 x H.960 PTV8F3 570 718 1.146 1.149

panelling

W.1920 x H.1280 PTV8F4 610 770 1.197 1.211

IR receiver "00"
This unit is used to transmit CODE NET PRICE
command signals to the TV
through the remote control. CRIR 364

designer M. LIPPARINI
Prices listed are for standard colours. For other colours add 15% to the price
500 For antiqued finish lacquer, add 35% only on the 3 colours available, see page 6.
