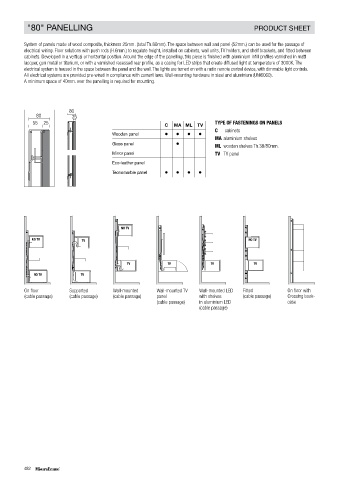

"80" PANELLING PRODUCT SHEET COMPOSITIONS "80" PANELLING

EXAMPLES OF MODULARITY BETWEEN "80" PANELLING AND TAO / CROSSING SYSTEMS
System of panels made of wood composite, thickness 25mm. (total Th.80mm). The space between wall and panel (52mm.) can be used for the passage of
electrical wiring. Floor solutions with push rods (H.6mm.) to regulate height, installed on cabinets, wall units, TV holders, and shelf brackets, and fitted between
cabinets. Developed in a vertical or horizontal position. Around the edge of the panelling, this piece is finished with aluminium infill profiles varnished in matt
lacquer, gun metal or titanium, or with a varnished recessed rear profile, as a casing for LED strips that create diffused light at temperature of 3000K. The
electrical system is housed in the space between the panel and the wall. The lights are turned on with a radio remote control device, with dimmable light controls.
All electrical systems are provided pre-wired in compliance with current laws. Wall-mounting hardware in steel and aluminium (UNI6060).
A minimum space of 40mm. over the panelling is required for mounting.

80
80 25
55 25 C MA ML TV TYPE OF FASTENINGS ON PANELS
C cabinets
Wooden panel • • • •
MA aluminium shelves
Glass panel • ML wooden shelves Th.38/80mm. ON FLOOR SUPPORTED
Mirror panel TV TV panel
Eco-leather panel
Tecnomarble panel • • • •

NO TV
NO TV TV NO TV
WALL-MOUNTED WALL-MOUNTED TV PANEL LED

TV TV TV TV

NO TV TV

On floor Supported Wall-mounted Wall-mounted TV Wall-mounted LED Fitted On floor with
(cable passage) (cable passage) (cable passage) panel with shelves (cable passage) Crossing book-
(cable passage) in aluminium LED case
(cable passage)

ON THE FLOOR WITH LED AND WALL UNIT LED TV PANEL ON THE FLOOR WITH CROSSING
BOOKCASE

LED WALL UNIT WITH LED ALUMINIUM SHELVES BUILT-IN
