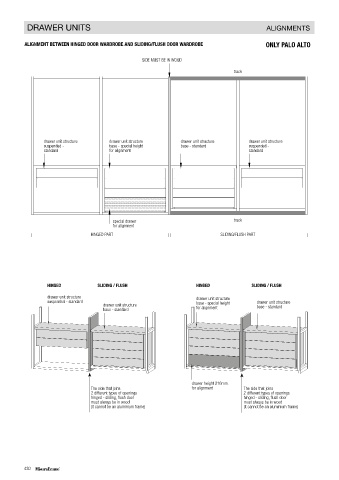

DRAWER UNITS ALIGNMENTS

ALIGNMENT BETWEEN HINGED DOOR WARDROBE AND SLIDING/FLUSH DOOR WARDROBE ONLY PALO ALTO

SIDE MUST BE IN WOOD
track

drawer unit structure drawer unit structure drawer unit structure drawer unit structure
suspended - base - special height base - standard suspended -
standard for alignment standard

special drawer track
for alignment
HINGED PART SLIDING/FLUSH PART

HINGED SLIDING / FLUSH HINGED SLIDING / FLUSH
drawer unit structure drawer unit structure
suspended - standard base - special height drawer unit structure
drawer unit structure base - standard
base - standard for alignment

drawer units

drawer height 216mm.
The side that joins for alignment The side that joins
interior
2 different types of openings 2 different types of openings
hinged - sliding, flush door hinged - sliding, flush door
must always be in wood must always be in wood
(it cannot be an aluminium frame) (it cannot be an aluminium frame)

D.546mm.

430
