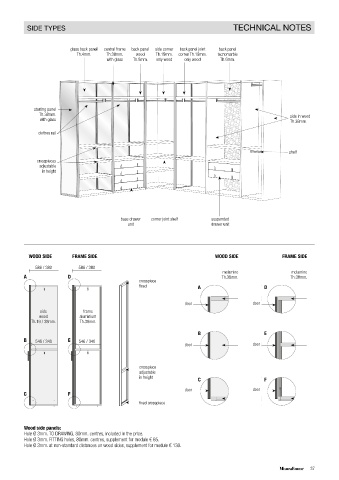

PALO ALTO I-BOX WARDROBE TYPES SIDE TYPES TECHNICAL NOTES

WALK-IN WARDROBE
WOOD SIDES FRAME SIDES glass back panel central frame back panel side corner back panel joint back panel
Th.4mm. Th.38mm. wood Th.19mm. corner Th.19mm. tecnomarble
with glass Th.8mm. only wood only wood Th.6mm.

starting panel
Th.38mm. side in wood
with glass Th.38mm.
clothes rail

HINGED DOOR WARDROBE
WOOD SIDES FRAME SIDES shelf
crosspieces
adjustable
in height

base drawer corner joint shelf suspended
unit drawer unit

SLIDING DOOR WARDROBE WOOD SIDE FRAME SIDE WOOD SIDE FRAME SIDE
WOOD SIDES FRAME SIDES
586 / 380 586 / 380
melamine melamine
A D Th.38mm. Th.38mm.
crosspiece
fixed A D

door door
side frame
wood aluminium
Th.19 / 38mm. Th.38mm.
B E
B 546 / 340 E 546 / 340
door door

FLUSH DOOR WARDROBE
WOOD SIDES FRAME SIDES crosspiece
adjustable
in height
C F
door door
C F
fixed crosspiece

Wood side panels:
Hole Ø 3mm. TO DRAWING, 80mm. centres, included in the price.
Hole Ø 3mm. FITTING holes, 80mm. centres, supplement for module € 65.
Hole Ø 3mm. at non-standard distances on wood sides, supplement for module € 130.
