MILLIMETRICA walk-in wardrobe HEIGHT MODULARITY WIDTH / DEPTH MODULARITY MODULARITY

For height reductions, see the chapter on Reductions and Supplements page 546. For height and depth reductions, see chapter on Reductions and Supplements page 546.

HEIGHT MODULES

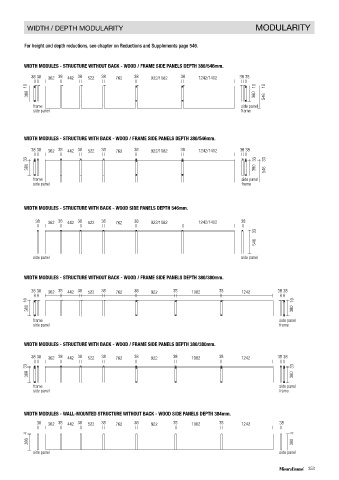

WIDTH MODULES - STRUCTURE WITHOUT BACK - WOOD / FRAME SIDE PANELS DEPTH 380/546mm.
H.2902mm.
H.2742mm. 38 38 38 38 38
H.2582mm. 38 38 362 442 522 762 922/1082 1242/1402 38 38
H.2422mm. 10 10 10
H.2262mm. 380 380 546

H.1942mm. frame side panel
side panel
frame

WIDTH MODULES - STRUCTURE WITH BACK - WOOD / FRAME SIDE PANELS DEPTH 380/546mm.
38 38 362 38 442 38 522 38 762 38 922/1082 38 1242/1402 38 38
33 33 33
380 380 546

frame side panel
side panel frame

FOR INSTALLATION Upper space 30mm. (WITHOUT TRANSFORMER)
Upper space 70mm. (WITH EXTERNAL TRANSFORMER lying on the top). WIDTH MODULES - STRUCTURE WITH BACK - WOOD SIDE PANELS DEPTH 546mm.

38 362 38 442 38 522 38 762 38 922/1082 1242/1402 38
FLOOR-STANDING MILLIMETRICA WALL-MOUNTED MILLIMETRICA
33
UPPER ADJUSTMENT
Leave 80 / 100mm. in height 546
for adjustment.
side panel side panel
30 MisuraEmme MisuraEmme

WIDTH MODULES - STRUCTURE WITHOUT BACK - WOOD / FRAME SIDE PANELS DEPTH 380/380mm.

38 38 362 38 442 38 522 38 762 38 922 38 1082 38 1242 38 38
10 10
380 380

frame side panel
Without transformer side panel frame

WIDTH MODULES - STRUCTURE WITH BACK - WOOD / FRAME SIDE PANELS DEPTH 380/380mm.
SIDE ADJUSTMENT
Leave at least 20mm. in height 38 38 362 38 442 38 522 38 762 38 922 38 1082 38 1242 38 38
for adjustment.
70 33 33
380 380
MisuraEmme
MisuraEmme
frame side panel
side panel frame

WIDTH MODULES - WALL-MOUNTED STRUCTURE WITHOUT BACK - WOOD SIDE PANELS DEPTH 384mm.
38 362 38 442 38 522 38 762 38 922 38 1082 38 1242 38
With external transformer 4 4
60W USA / ITA
80W USA / ITA 380 380
side panel side panel

352 353
