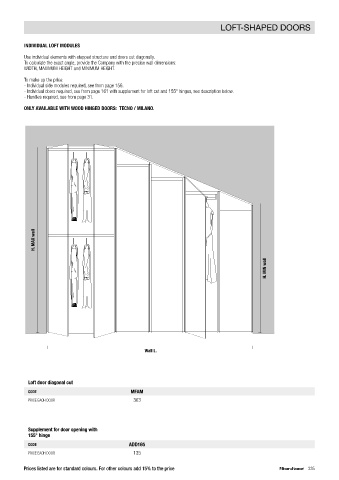

PLANNING Palo Alto I-Box DOOR OPENING LOFT-SHAPED DOORS

DOOR OPENING WITH WOOD PANELS ONLY. INDIVIDUAL LOFT MODULES

To make up the price: Use individual elements with stepped structure and doors cut diagonally.
To calculate the exact angle, provide the Company with the precise wall dimensions:
- PAIR OF DOORS required, see from page 161.
WIDTH, MAXIMUM HEIGHT and MINIMUM HEIGHT.
- HANDLES required, see from page 31.
To make up the price:
- TOP / INTERNAL SHELF / BACK in the required size, see from page 178. - Individual side modules required, see from page 156.
- Individual doors required, see from page 161 with supplement for loft cut and 155° hinges, see description below.
- By request, 155° hinges can be fitted, with an additional price, see description below. - Handles required, see from page 31.

- By request, a brush can be fitted to the lower part of the doors, with an additional price described below. ONLY AVAILABLE WITH WOOD HINGED DOORS: TECNO / MILANO.
For internal equipment for the space above the door, see from page 300.
NOT AVAILABLE WITH NARCISSE AND ZEUS DOORS.

H. MAX wall

H. MIN wall

19 922 / 1082 / 1242 19

opening
586

22
Wall L.

Supplement
155° hinged door opening
Loft door diagonal cut
CODE ADD165
CODE MFAM
PRICE EACH DOOR 135
PRICE EACH DOOR 303

Brush fitted Supplement for door opening with
on the lower part, inside door 155° hinge

CODE SPP CODE ADD165
PRICE EACH DOOR 68 PRICE EACH DOOR 135

334 Prices listed are for standard colours. For other colours add 15% to the price Prices listed are for standard colours. For other colours add 15% to the price 335
