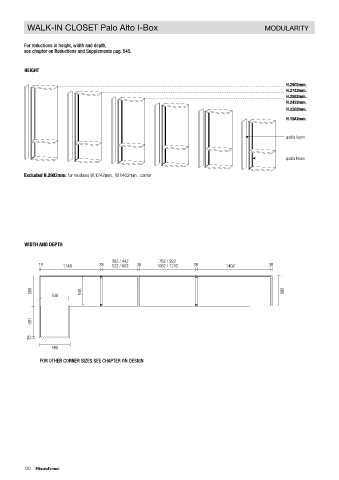

WALK-IN CLOSET Palo Alto I-Box MODULARITY TECHNICAL NOTES

For reductions in height, width and depth, FOR THE COMPOSITION OF THE WALK-IN CLOSET
see chapter on Reductions and Supplements pag. 545.
To be added to the modules:

HEIGHT - WOOD SIDE PANEL or BEGINNING FRAME Th.38mm.
- WOOD SIDE PANEL or CENTRAL FRAMES Th.38mm.
H.2902mm.
H.2742mm. - WOOD SIDE PANEL or END FRAME Th.38mm.
H.2582mm.
H.2422mm. - INTERNAL STRUCTURAL ELEMENTS: see from pag. 130 and chapter on Equipments and accessories starting from pag. 397.
H.2262mm.
For reductions in HEIGTH, WIDTH and DEPTH see chapter on Reductions and Supplements pag. 545.
H.1942mm.

spalla legno
38 38 38 38 38 38
spalla telaio

Excluded H.2902mm. for modules W.1242mm., W.1402mm., corner 586 + + + + + + + + + + + + 586

wood side panel wood side panel frame centre wood side panel
beginning side central side panel frame end side
panel panel

WIDTH AND DEPTH

362 / 442 762 / 922 FOR ASSEMBLY: Upper space of 20mm. WITHOUT TRANSFORMER.
19 1148 38 522 / 602 38 1082 / 1242 38 1402 38 Upper space of 70mm. FOR TRANSFORMER for LED LIGHTING SYSTEM ON COVER.
Upper space of 20mm. WITH TRANSFORMER RECESSED INTO THE COVER WITH INSPECTABLE DOOR.
A space of 60mm. must be included on sides.

FOR ASSEMBLY IN RECESS: Upon request, arrangement of a module for assembly in recess, with supplement see pag. 545
586 546 586 A space of 30mm. must be included on sides.
546
ASSEMBLY IN RECESS ON CORNER MODULE

581

38
586
20 30 20
FOR OTHER CORNER SIZES SEE CHAPTER ON DESIGN led

Without transformer With external transformer Recessed transformer
60W USA / ITA RECESSED ELECTRIFIED BOX
80W USA / ITA WITH INSPECTABLE DOOR

120 121
