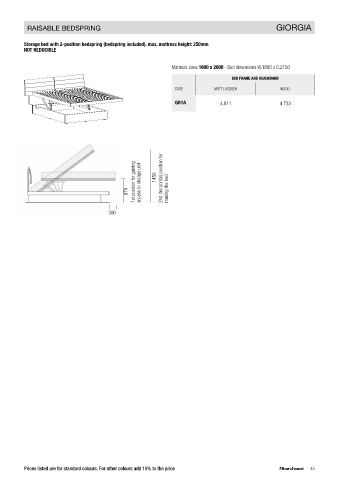

Page 47 - Bed and night group DOLI-LE22/3

GIORGIA PRODUCT SHEET RAISABLE BEDSPRING GIORGIA

HEADBOARD Storage bed with 2-position bedspring (bedspring included). max. mattress height: 250mm
Panels in tapered curved multi-layer covered in MDF. Horizontal grooves with slat effect. Rear support panel in melamine faced wood composite panel in same NOT REDUCIBLE
finish of reclining panels 5-position reclining mechanism in galvanised steel. Hinge for rotating reclining panels, in brass with a satin nickel finish.
STORAGE BED WITH RAISABLE BEDSPRING
Structure Th.38mm. and bottom in melamine facing Th.19mm. Bed base in MDF 80x50mm. raised with handle. Front corners with metal insert in Mattress sizes 1600 x 2000 - Bed dimensions W.1890 x D.2150
524 gun metal. Bed frame fixed to the bedspring is raised at the same time. Raisable bedspring with 2 positions, with wood frame and slats: raise to place
objects inside, release and horizontal position for making the bed. Internal dimensions of storage unit: 1280x1800xH.180mm. BED FRAME AND HEADBOARD
Raising action with 1450 NW oil-dynamic pistons. Warning: the pistons on the bedspring raising system are designed to raise the bedspring complete with the
weight of the mattress Kg.35 max (1600x2000). System must be used only when the mattress is on the bedspring. If the mattress is removed, keep CODE MATT LACQUER WOOD
the bedspring in the raised position.
BED FRAME WITH FIXED BEDSPRING GR1A 4.811 4.733
Bedspring in structural wood with painted steel crosspieces fixed for hooking feet and headboard. Bed frame in MDF 80x50mm. Front corners with metal insert
finished in 524 gun metal. Pyramid shaped wooden feet 60x60mm. in the same finish as the base frame.
BED BASE FOR CUSTOMER BEDSPRING
Blockboard bed base Th.38mm. Bedspring support crosspieces in epoxy enamel finish and a pair of wooden spacers with H.25mm. for increasing height of
bedspring already included in the price. Pyramid shaped wooden feet in same finish as the bed frame.
FINISHES
Matt lacquer, glossy lacquer, 51 black oak, 53 elm grey, 66 tobacco, 54 eucalyptus NEW .
RAISABLE BEDSPRING

976 1st position for gaining 1450 2nd (horizontal) position for
max. height mattress 200mm 670 access to storage unit making the bed
1700/1900 Raisable structural bedspring with wood bed base
1890
80 Raisable bedspring with 2 positions
300
305 50 Storage unit with adjustable feet.
225 180
305
Storage bed bottom
2150

FIXED BEDSPRING

976
max. height mattress 200mm

1700/1900
1890 Structural bedspring with wood bed base
80
305 50
225 Piede legno piramidale
305
2150/2250
CUSTOMER BEDSPRING

970 H. for bedsprings:
1020 A - H.150mm.
38 B - H.125mm.
Blockboard bed frame
1686/1886 A B
175 Pair of wooden spacers
1890 headboard H.25mm. for increasing height of bedspring
320/370

150/200 Metal crosspieces for supporting bedspring
320
370 Pyramid shaped wooden foot H.150/200mm.
Specify desired height in the order.
2110/2210
44 Prices listed are for standard colours. For other colours add 15% to the price 45
